In October 2012 we sailed onboard RV Meteor from Las Palmas (Spain) to Cristobal (Panama).

On this site you can follow our whereabouts.

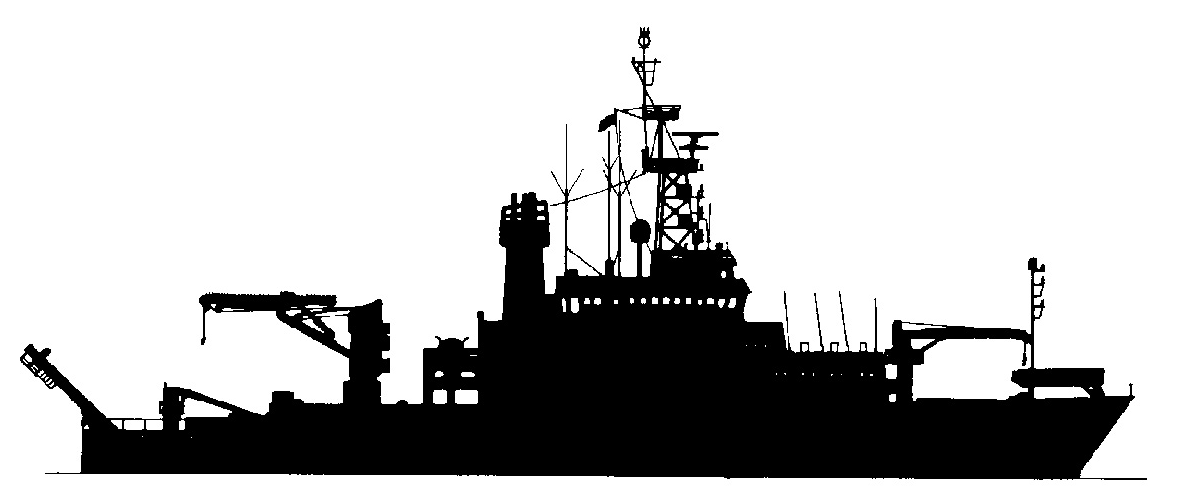

Click on the Meteor for her present position (external link to sailwx site)

Meteor

Weekly report 1
Weekly report 2
Weekly report 3

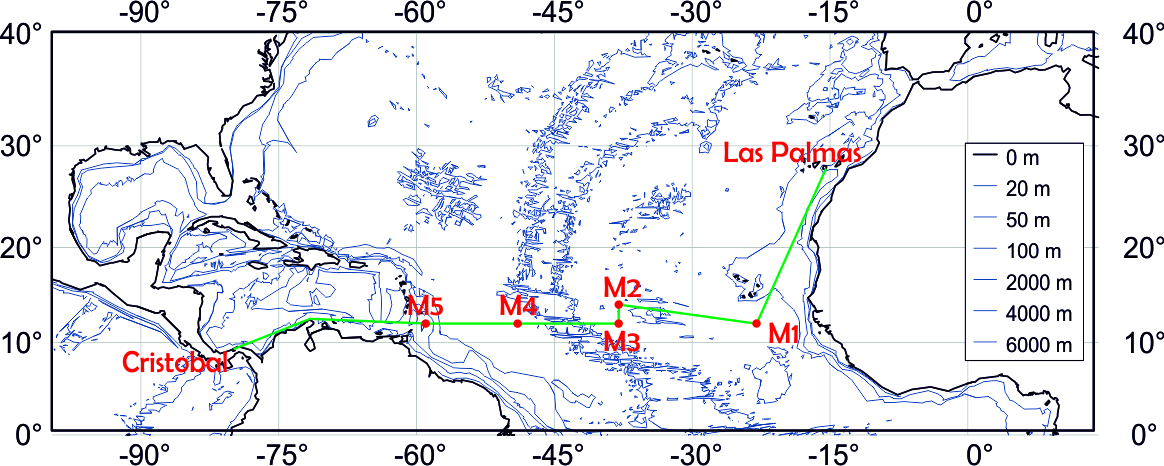

The route we┤ll sail: from Las Palmas (Canary islands) via the Cape-Verdian islands to Cristobal, (the Atlantic side of the Panama-Canal). M1 to M5 indicate the mooring positions.
On the global map of vegetation one can clearly see how the desert belts are lined up and that the Sahara is by far the largest desert on Earth.

earth

M89-planned-track

Bathy-Profile-at-12N

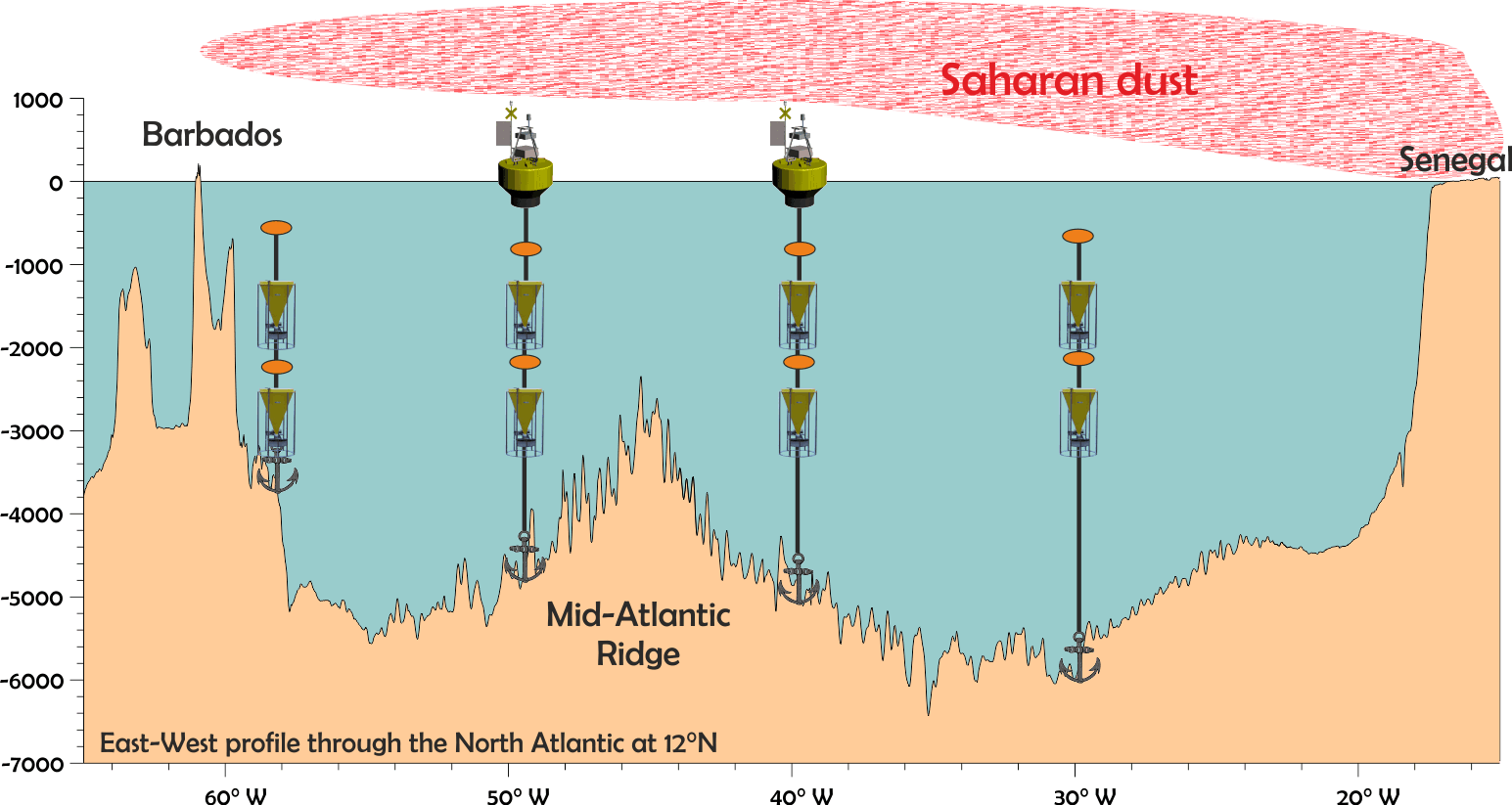

This is the eventual goal: an East-West transect at  12░ North.

This image depicts the transect with four (of five) moorings consisting of sediment traps (yellow), floats (orange) and two floating dust collectors.

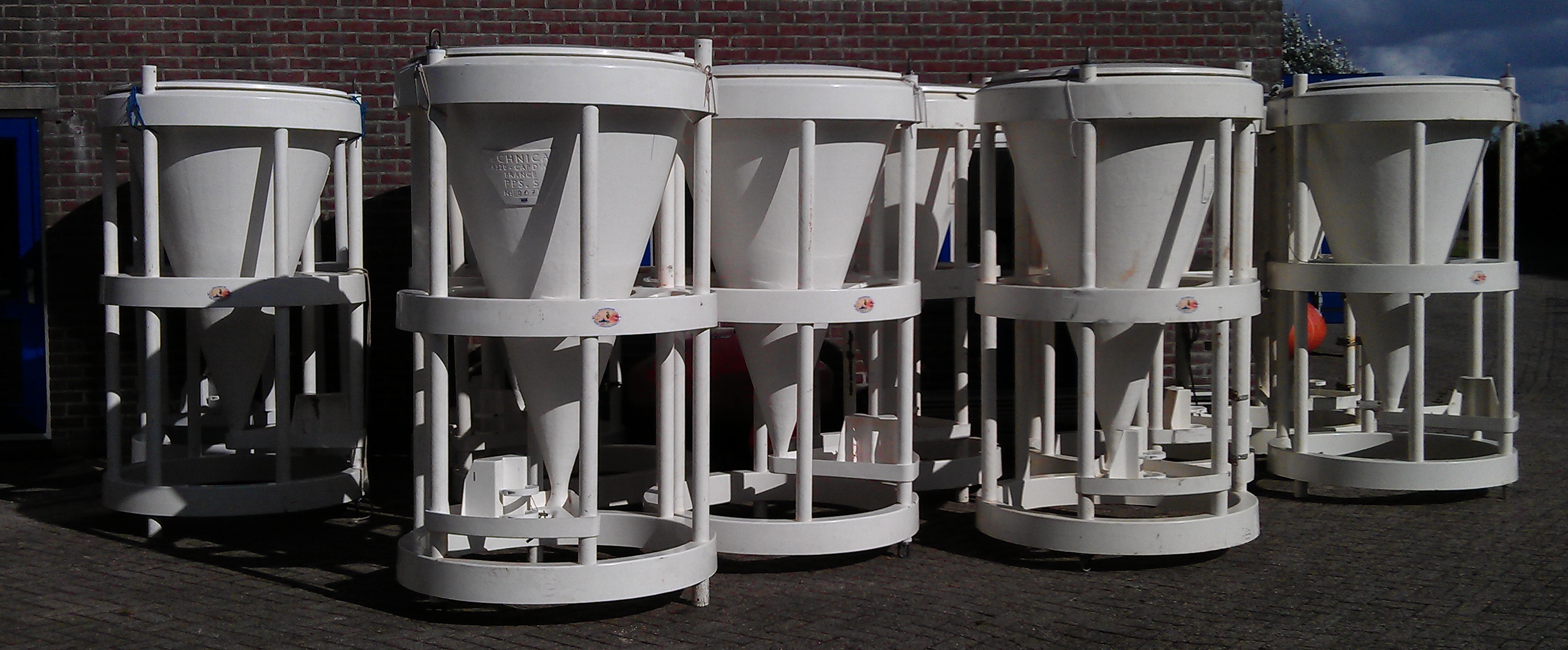

The sediment traps collect all material sinking through the water column, and obviously we┤re hoping for lots of Saharan dust!

The floating dust collectors are not ready yet, they’ll hopefully be deployed during our next cruise in November 2013.


De sedimentvallen staan klaar op Texel

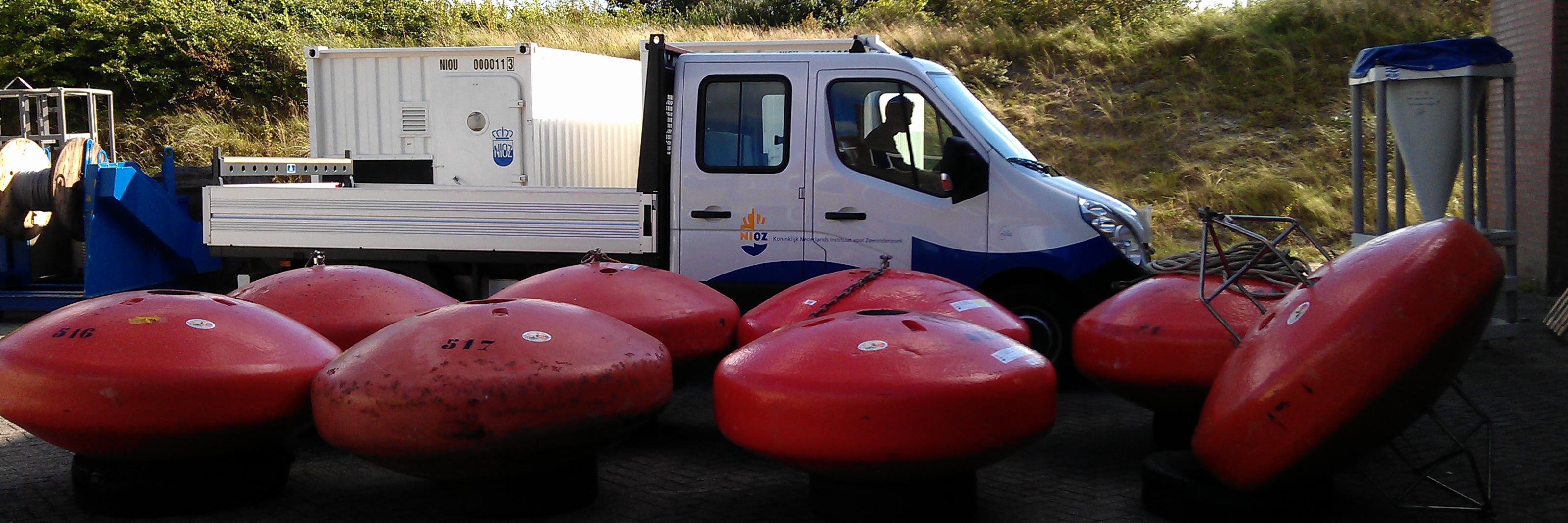

The smarties, floatation devices. Each smartie weighs about 300kg but can also lift about 350kg in water!

Smarties op Texel

Beers-truck1

21 September

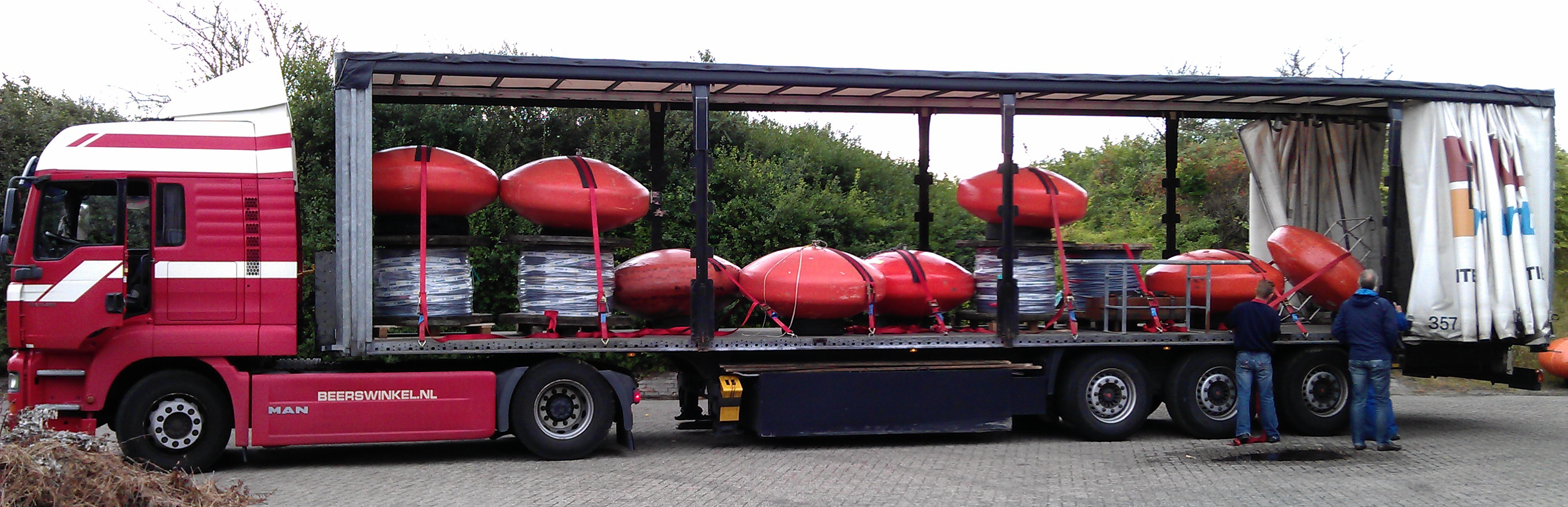

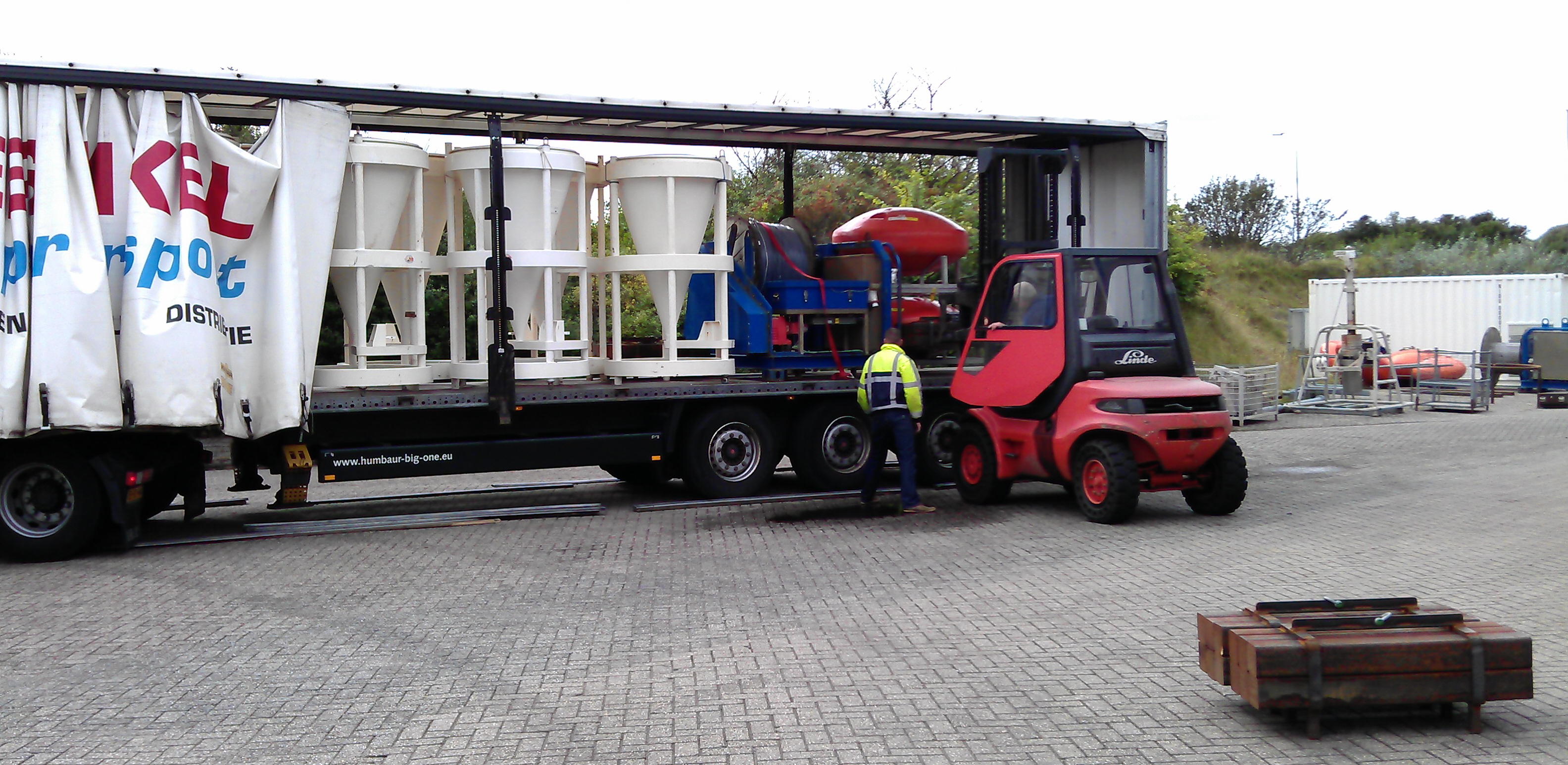

All our stuff was loaded onto four trucks and brought to Bremerhaven. Here you see most of the sediment traps.

In the foreground there┤s an anchor of one of the moorings. This one weighs about 2 tons!

to top

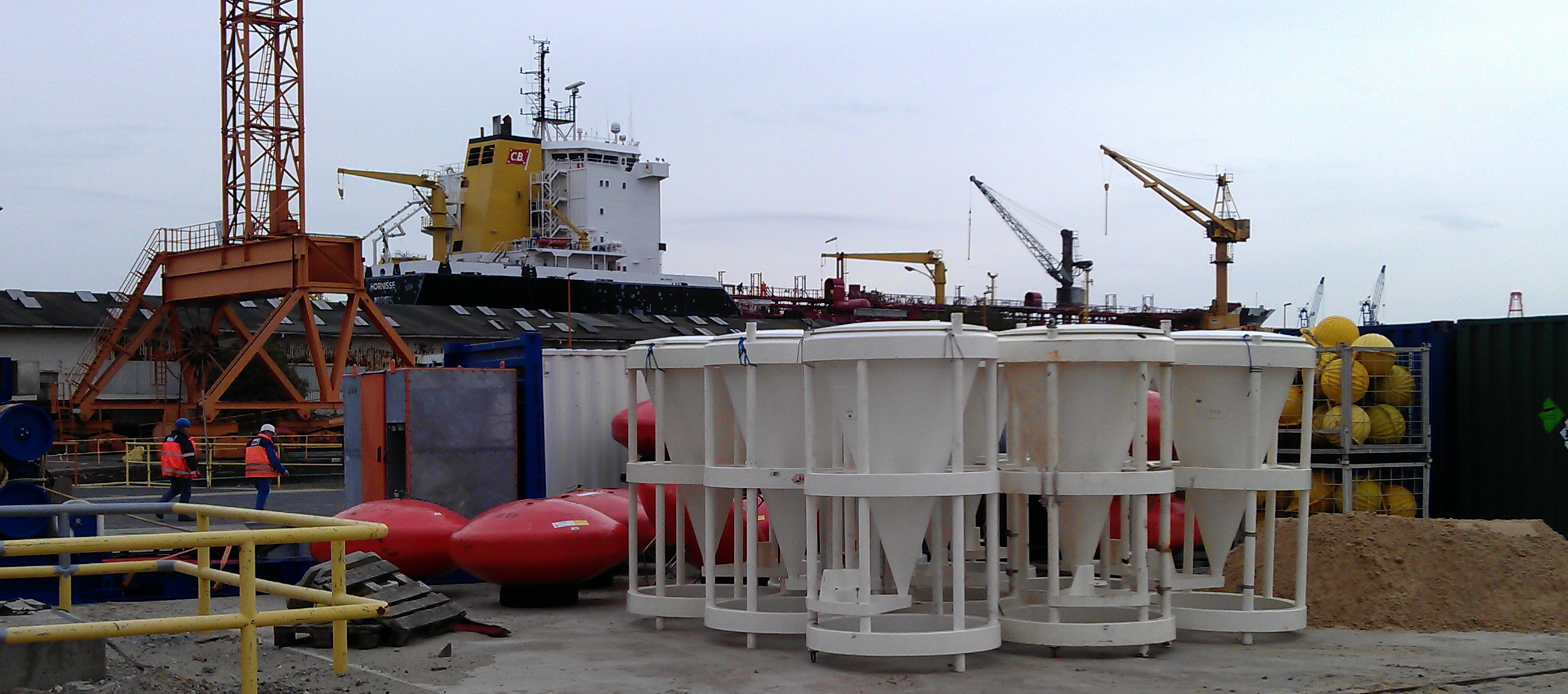

The lower picture shows most of the smarties and some cables. All in all we┬┤ll deploy about 16km of cable.

Beers-truck2

Sedimentvallen en smarties in B'haven

22 September

On Friday Piet Grisnigt (NIOZ) and 2 more drivers delivered all our gear in Bremerhaven at the pier where RV Meteor landed in the evening.

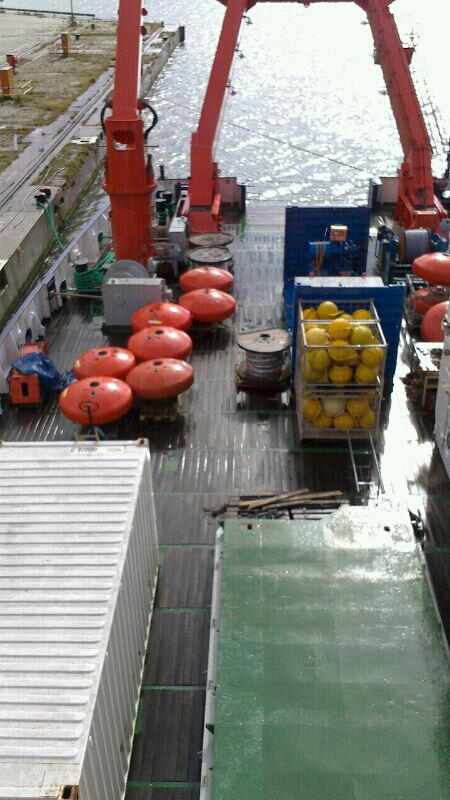

On Saturday Yvo Witte and Barry Boersen (both NIOZ) put everything on deck.

On Monday 24 September RV Meteor will depart for Las Palmas where she┤ll port on 2 October (weather permitting). We┤ll board there on 3rd October. Looking forward to that!


To top

Alle spullen zijn al aan dek

23 September

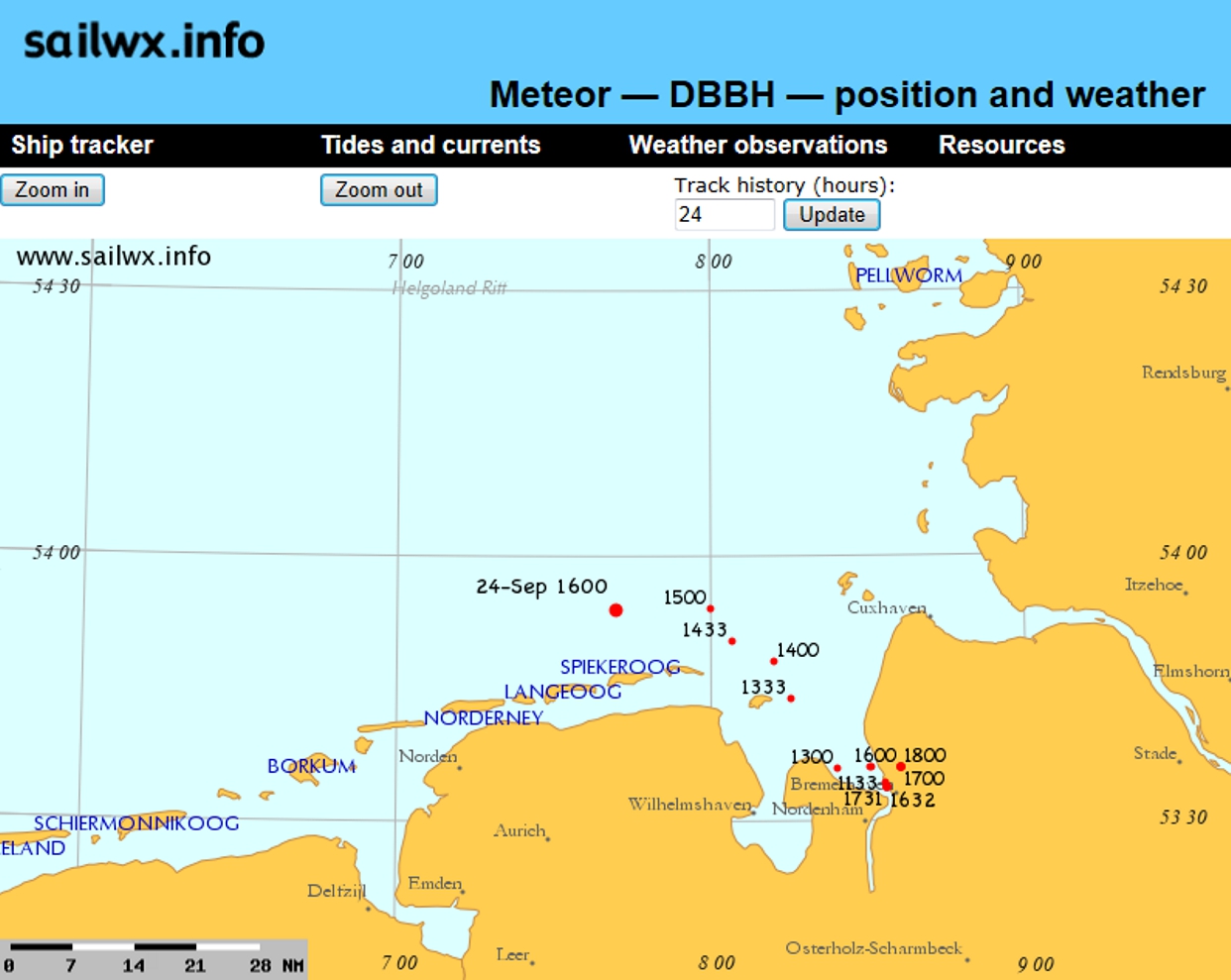

This afternoon Meteor set sail towards the North Sea. She is now sailing along Wadden islands, good luck against this storm!



naar top

Meteor´s position on the 23rd

atlanticdust_omp_2012203

24 September

Thanks to satellites, we can now observe dust outbreaks very clearly. The big advantage of this is that we can actually see where the stuff is coming from and where it’s going to.

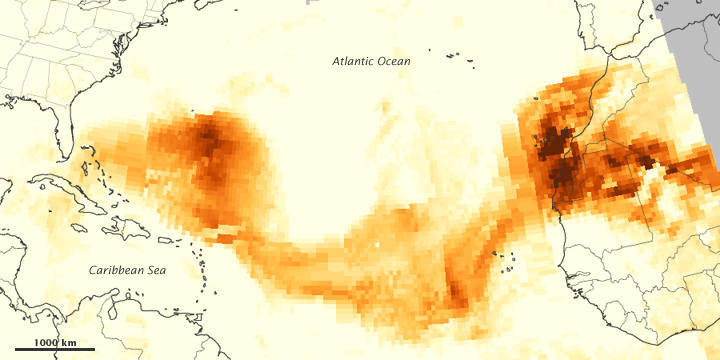

The image here shows a dust outbreak that occurred last July. According to the accompanying text on the NASA website the image was taken on 21 July 2012 but I assume this is actually a composite over more days.

naar top

26 September

Directly after leaving Bremerhaven, the┬  Meteor had to face a nasty storm (with outliers up to Bft 11!). Now she is in calmer waters, heading South along the Northwest French coast.

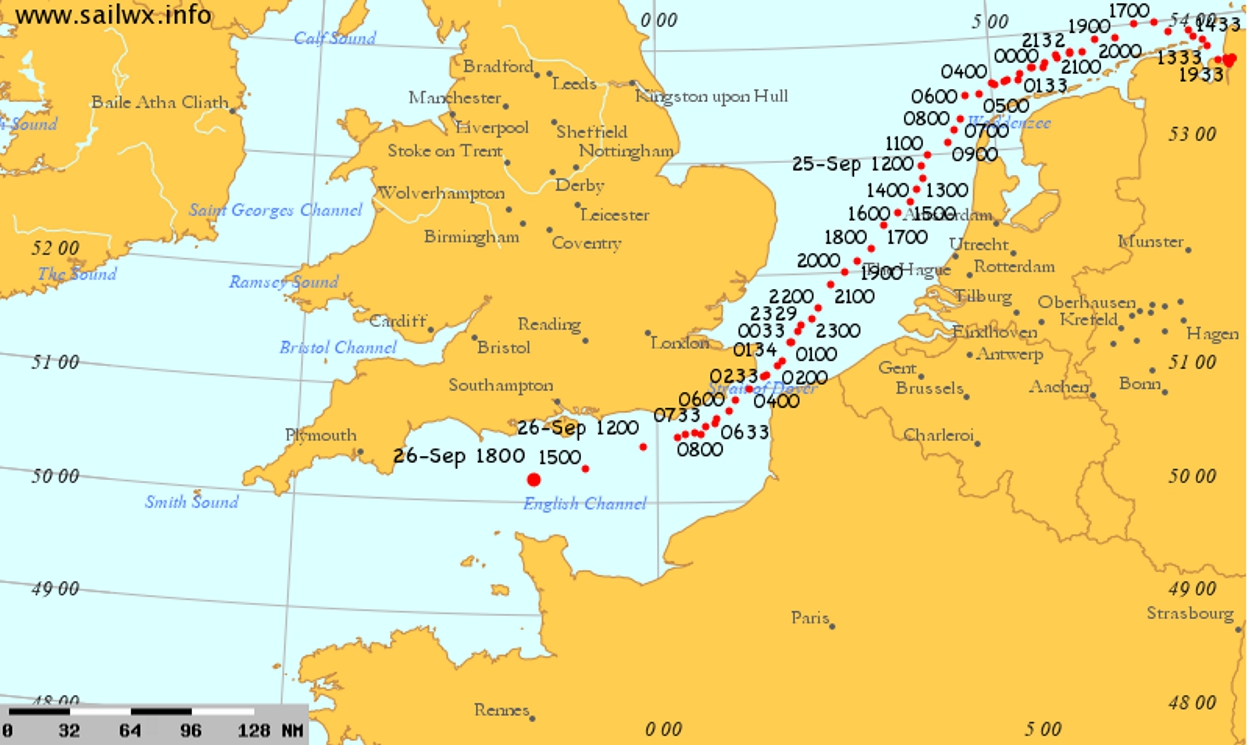

The image was taken from the sailwx website. At the top of this page youll find a link: clicking on the black ship will take you to this site.

Routinely, meteorological data are gathered on the ship as well. These data are transferred to a database on the shore, from which all kinds of meteorological surveys gather information. It might be that the daily weather report was (partially) based on the data that were collected on board Meteor!
So, should the weather forecast not be right, please inform the captain....

Meteor’s position is updated every hour, as indicated with the time stamps next to the red dots.

naar top

2012-09-26-DBBH-position

Sedimentval-in-de-lucht

28 September

During the NIOZ Inmartech meeting all kinds of instruments that are developed in our technical departments were demonstrated. On this picture one can nicely see how a sediment trap looks like under water: an anchor keeps the mooring at its position while a float (the orange smartie) keeps the line tight and the mooring upright. One such smartie has a buoyancy of 350 kg!

....obviously the flags are not part of the mooring under water....

naar top


30 September

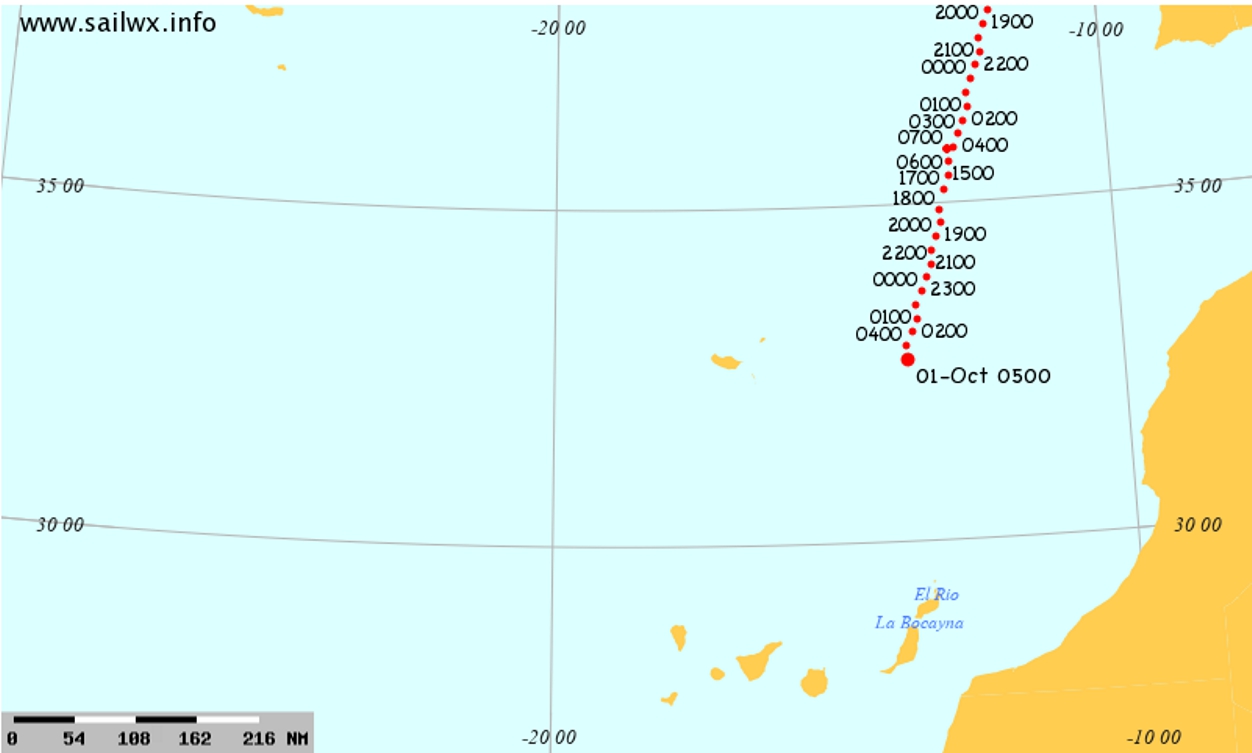

Despite very rough weather in both the North Sea as off Biscay, the Meteor is right in time for her port call in Las Palmas de Gran Canaria: well done captain and crew!

┬

naar top

2012-10-01-DBBH-position

2012-10-02-MeteorDag

2 October

We touched down on Gran Canaria and drove to the capital: Las Palmas, where RV Meteor was waiting for us! Despite bad weather she had arrived right on schedule in the harbour.

naar top

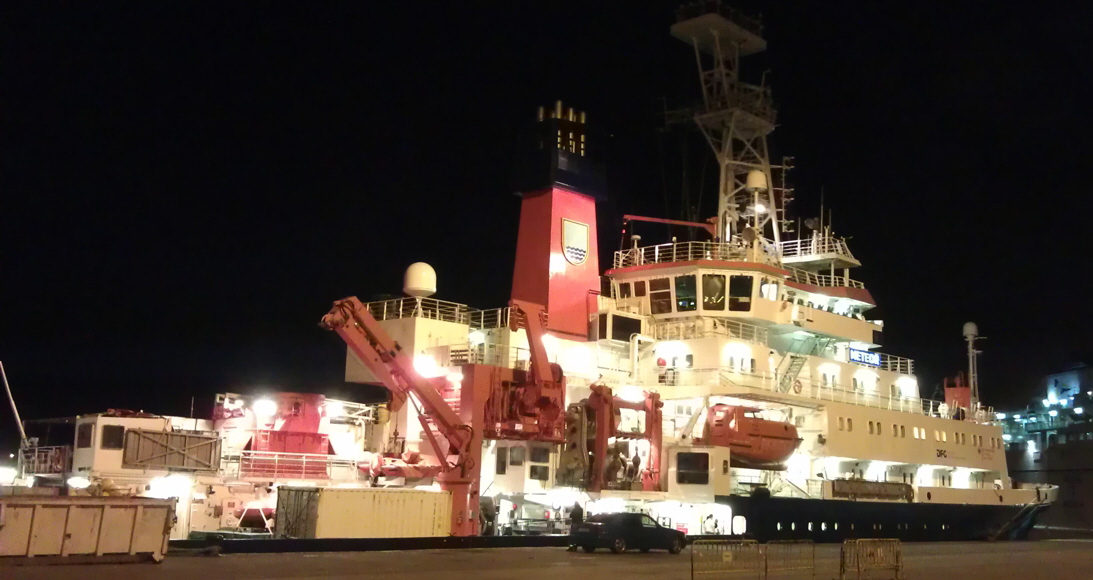

Meteor by night: quite a sight!

naar top

2012-10-02-MeteorNacht

2012-10-01-hiding-sun

3 October

There are two Hamburg/University meteorology students on board (Matthias and Akio) who want to know all about cloud-formation processes.
This beautiful picture was made by Matthias BrŘck.

to top

2012-10-03-DC-installation

3 October

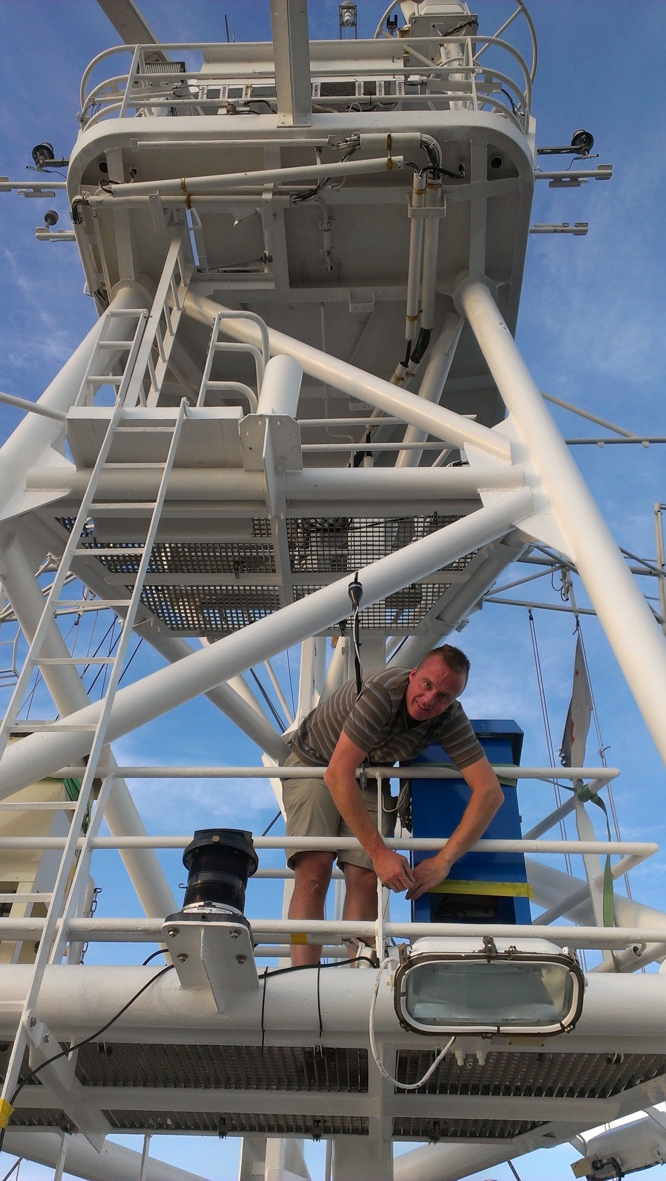

The main aim of this cruise is to study Saharan dust. Most of this dust ends up in the ocean, where we intend to monitor and collect it under water for initially one year with the moorings we┤re deploying.
In addition, we have 2 dust collectors that sample the atmosphere. Two of these dust collectors were installed in the mast above the bridge.
These instruments (the blue mail box behind me is one, the beige one to the left is the second one) need to be fixed very well as this high up on the ship the amplitude of movements is largest!

to top

4 October

Another picture by Matthias BrŘck  this time we see clouds in the sky breaking like waves in the water.

to top

2012-10-03-standing-wave-cloud

2012-10-04-Deck

4 October

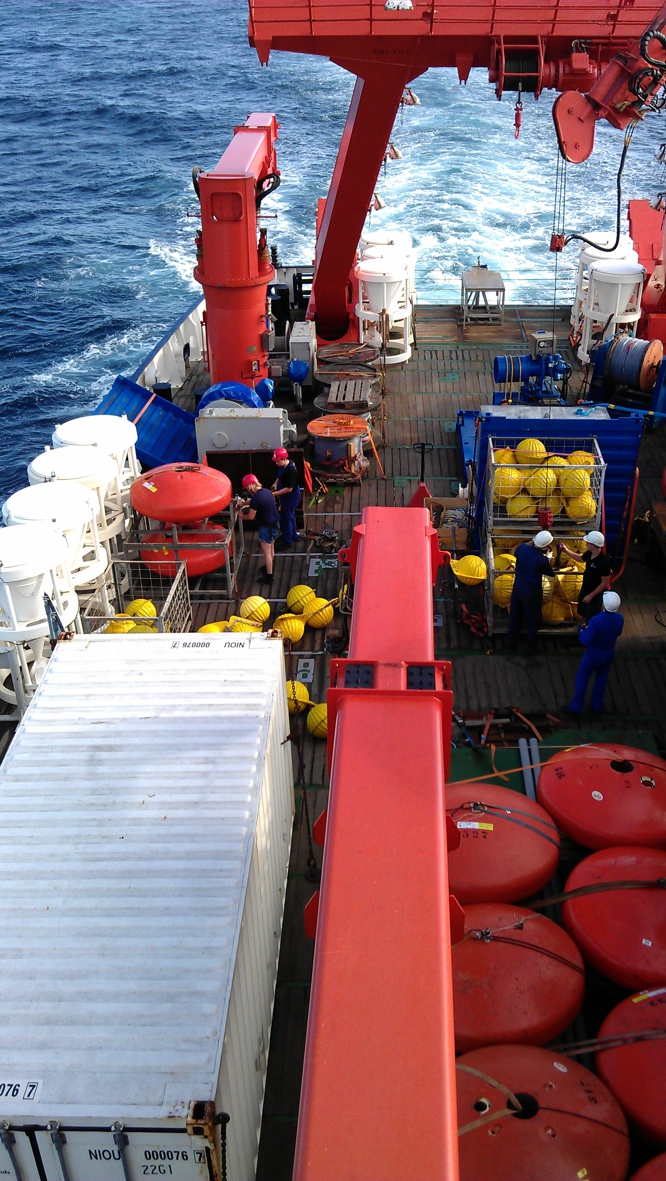

In two days we hope to deploy the first mooring. This involves quite some logistics: all instruments have to aligned in the right order! Yvo and Barry (both wearing white helmets in the middle of the photo) are arranging everything together with the ship┬┤s crew.

On the picture you can see a fair number of orange smarties (floats) as well as yellow floats. In addition the 10 white sediment traps are all over the deck.

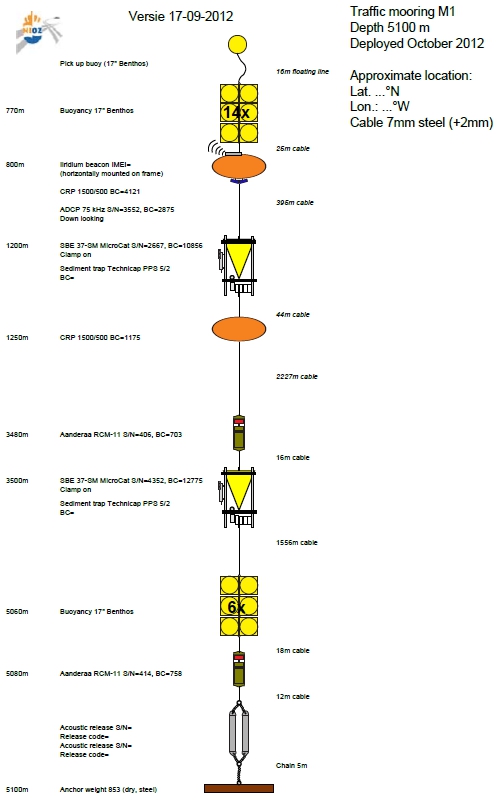

To the right is a schematic picture of what instruments a mooring is composed of

to top

M1

5 October

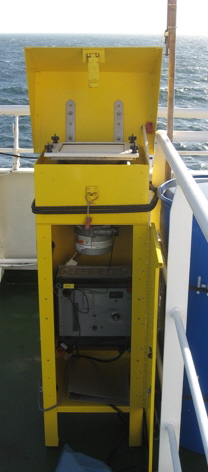

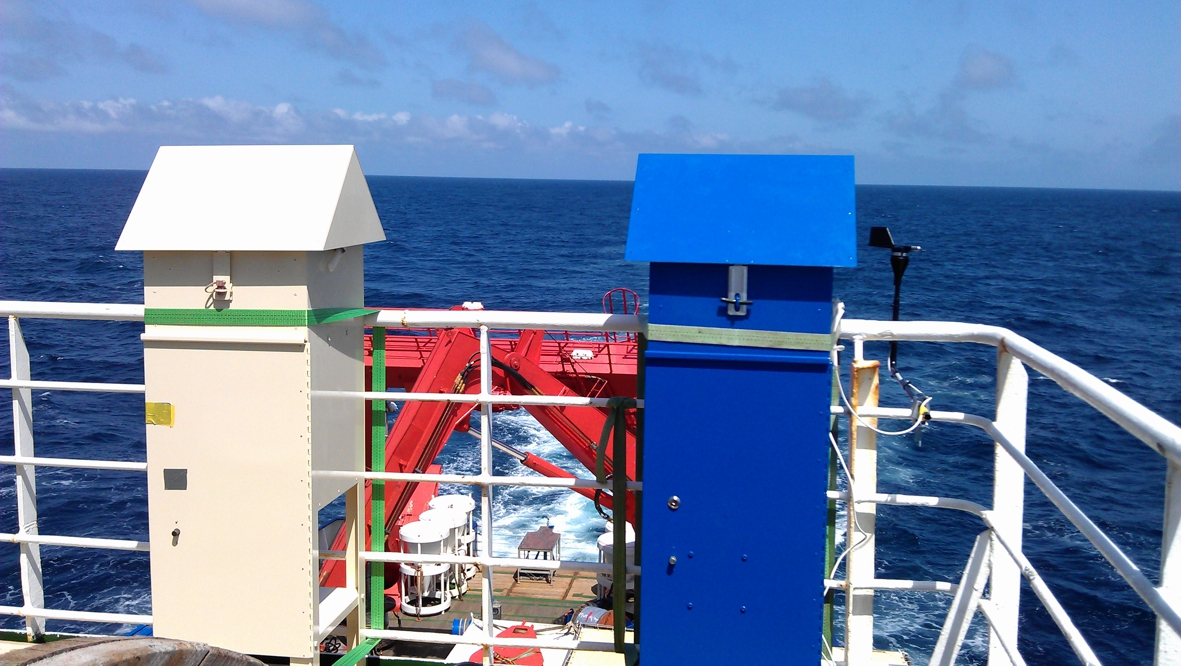

Here’s a short intro into dust collection.... The samplers are not much more than a vacuum-cleaner engine which sucks air through a filter. Behind the door there’s both the engine as well as the electronics registering the air flux, temperature, etc.

Directly under the hood the filter is mounted (see photo below).

naar top

2008-05-12-Staubsammler

2010-10-05-stofvangers

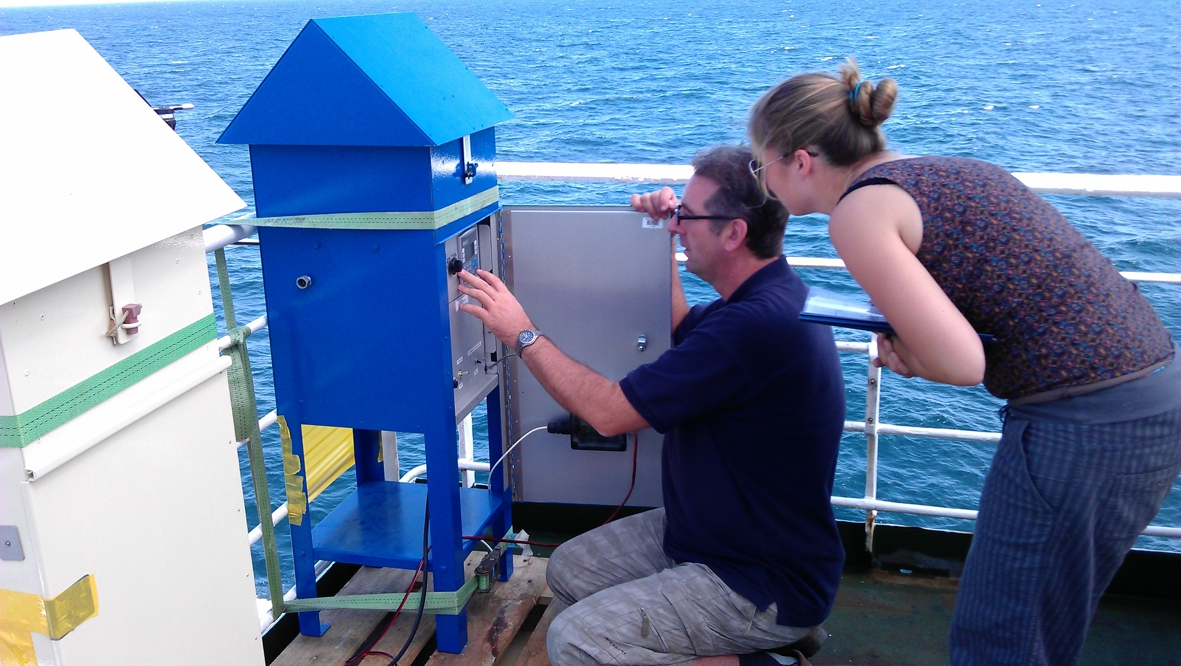

Bob and Michelle inspecting the registered data...

2010-10-05-BobMichelle

2012-10-05-Meteor-pantry

5 October

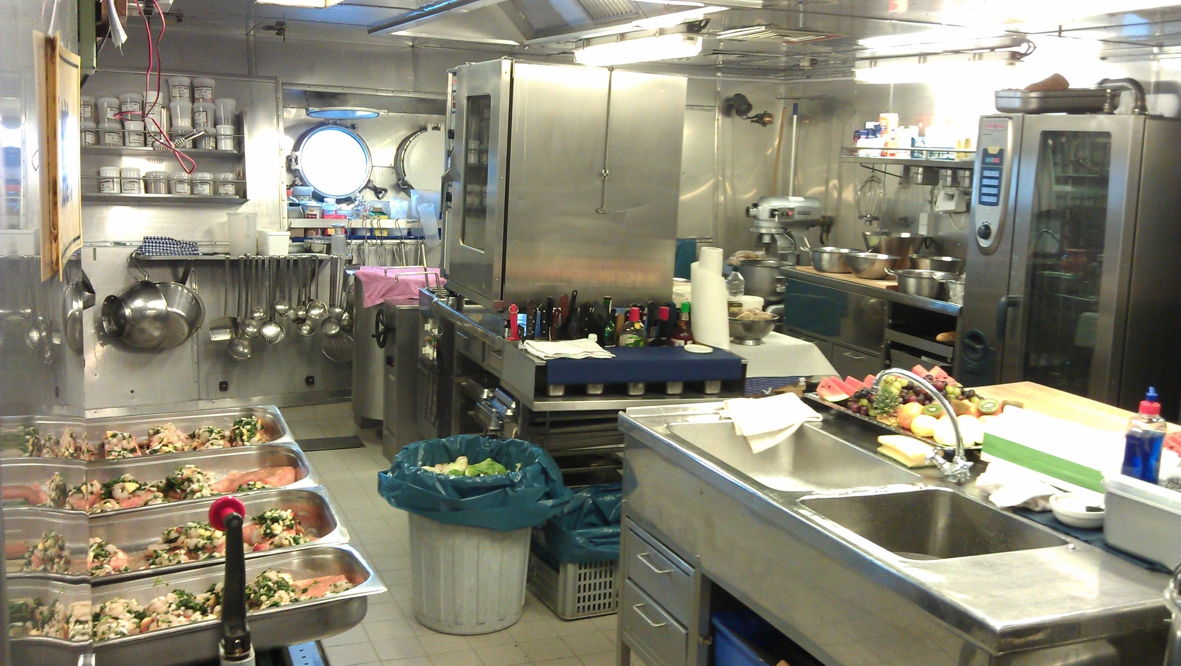

Here you can peek into the Meteor pantry. Today the menu included baked salmon; Klaus (the cook) and his colleagues spoil us!!

....see that happy look on Yvo’s face!?

naar top

2012-10-05-Yvo-kiest



2012-10-06-VliegVis

6 October

Flying fish DO exist!

Today we saw lots of these funny creatures that just pop out of the water unexpectedly. They’re not easily caught on camera, but Matthias managed to shoot one.

naar top

6┬ October

Spouts occur when the sea water is very warm (> 26.5┬░C). Here, just South of the Cape Verdian Islands, the sea water is 29┬░C;┬  more than warm enough to cause these little twisters.

┬

naar top

2012-10-06-Waterhoos

6┬ October

Time to introduce the scientific crew! Here you┤ll find my six colleagues on board, each in their own working environment┬

The two meteorology students from Hamburg Matthias BrŘck (left) and Akio Hansen (right) study cloud-formation processes.

2012-10-06-Akio

2012-10-06-Matthias

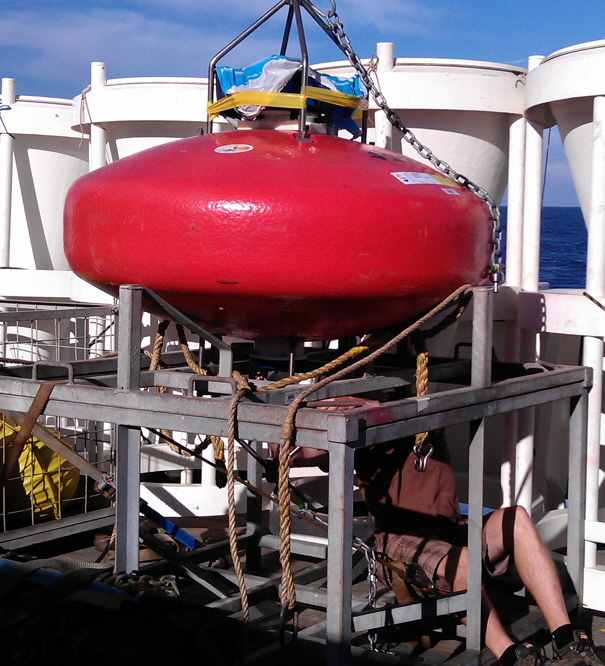

Barry (left) and Yvo (right, hidden: he’s a bit shy) both of NIOZ-MTM take care of assembling and deploying the moorings.

Just give these guys a piece of metal, wood, or plastic and they manage to transform it into an excellent tool

2012-10-06-Yvo

2012-10-06-Barry

Bob (NIOZ-GEO) is our electro-technician; he’d take any piece of equipment that has a power cable apart, modify it, and re-assemble it and most likely the tool works better than before. He is also responsible for the CTD deployments and assists Barry and Yvo with the moorings. Michelle studies Earth Sciences at the VU-Amsterdam. With her ever-present smile she takes on any assignment. Be it filtering water, sampling sediment cores, labelling petri-dishes, or exchanging dust filters; she’ll face any challenge.

2012-10-06-Bob

2012-10-06-Michelle

2012-10-07-CTD

7 October

Today we arrived at the first deployment position at 4AM. We started with a multibeam study to search for a suitable (nice and flat) position to drop the mooring.
We then continued with a CTD (a device to measure the temperature, depth and salinity of the water) and sampled water from different depths.

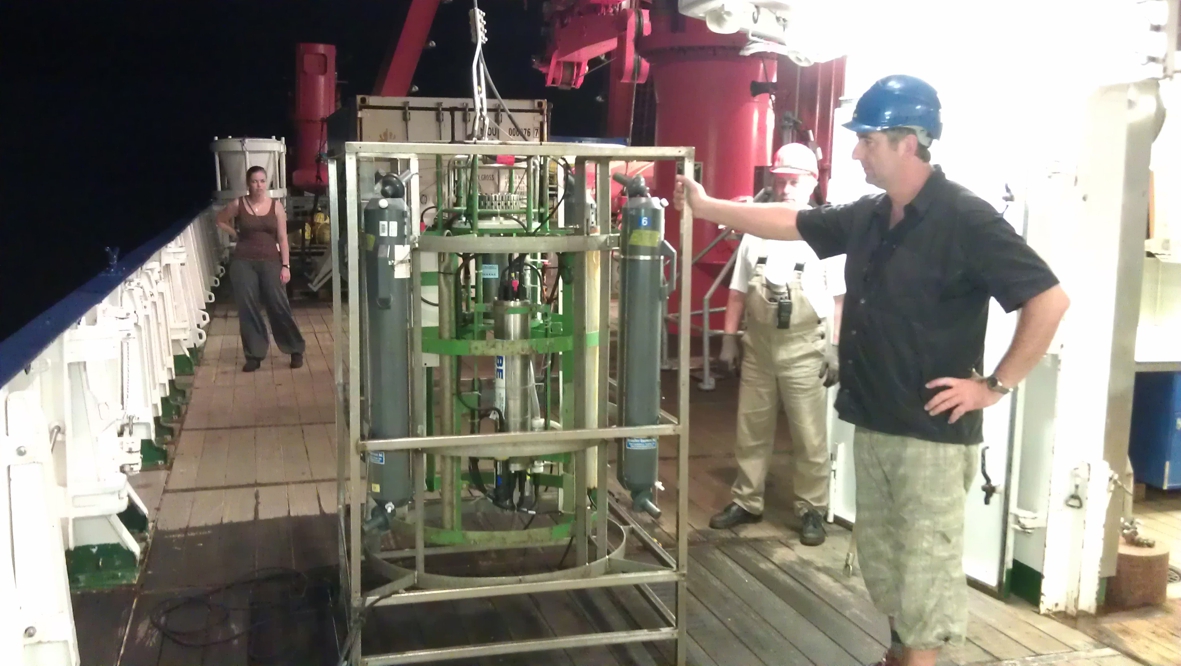

On this picture Bob is holding the CTD frame, directly next to his hand is one of four grey bottles that can hold 12l water.

The next instrument to go down was the multicore (see below for some pictures), and finally the mooring itself. All in all we ready at 19.00; a long day but everything went very smooth, so it was worth it!

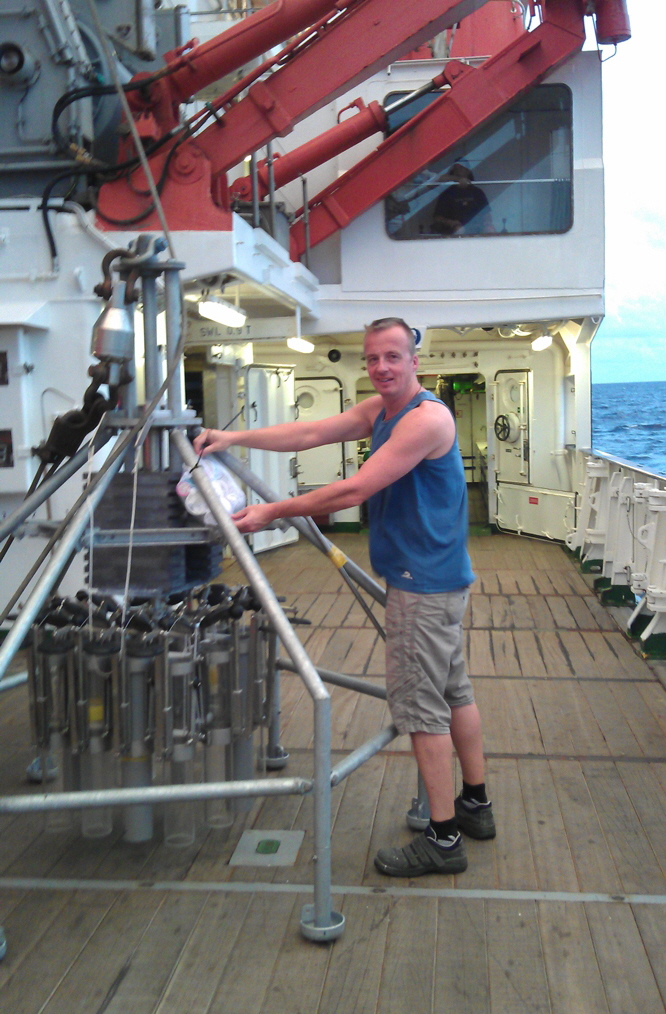

This is me, standing next to the multicorer. With this device we can sample the sea floor using 12 pipes of about 1m each.

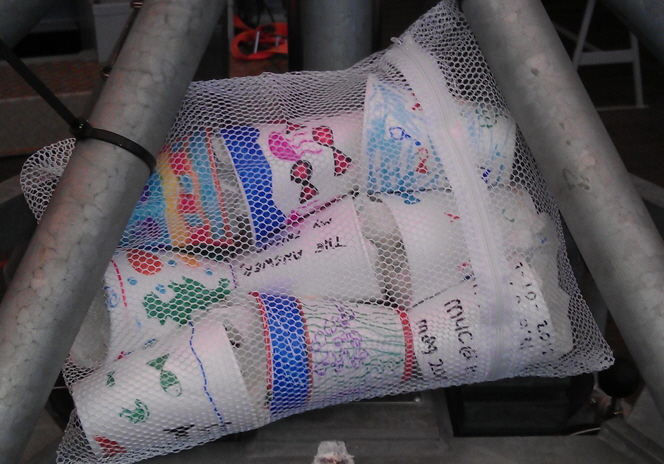

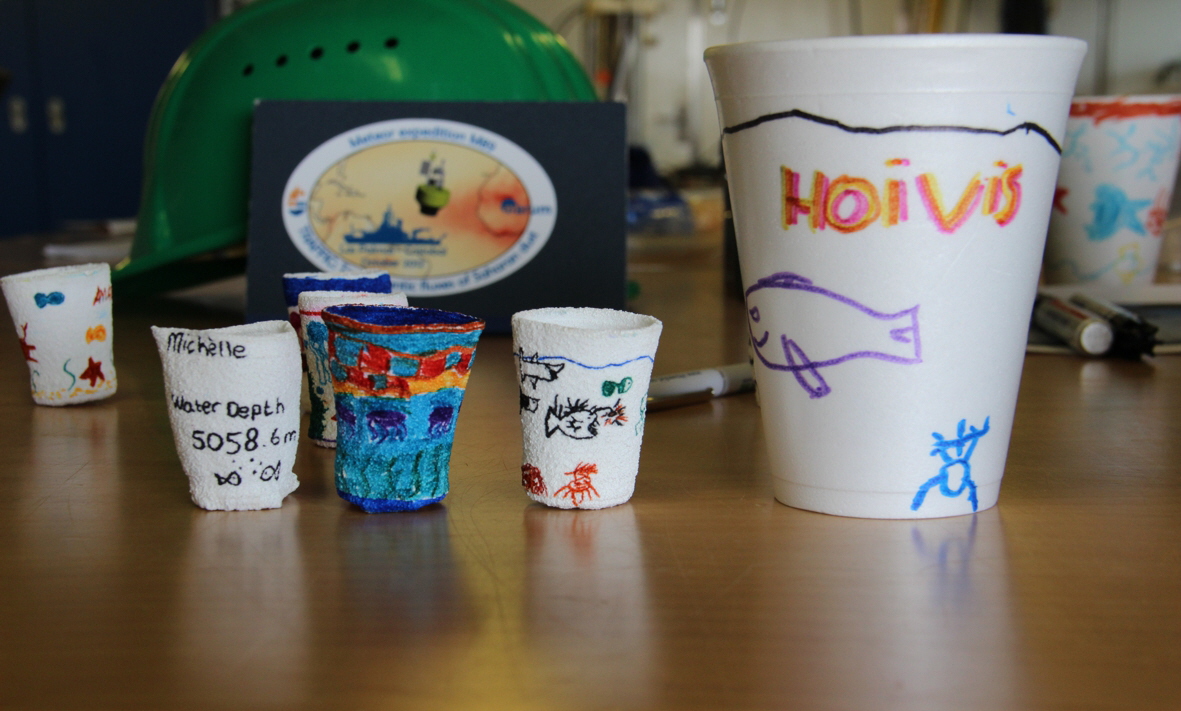

I fixed a net to the frame which holds 9 styrofoam cups, decorated by kids from the primary school `De Fontein` on Texel.

The multicorer went down to >5km, where ambient pressure exceeds 500bar. In the picture on the right one can see what this pressure does to the cups! All the air is squeezed out from the foam, and they get pretty small!. The decorations are still intact though.

to top

2012-10-07-bekers-aan-muc

2012-10-07-bekers-voor-na 2012-10-07-bekers-cu

8 October: This is what we want!!!

Below you see a satellite image (from NASAÔÇ™s earthobservatory website) which shows a dust storm blowing from NW Africa over the Atlantic Ocean. This dust storm occurred yesterday and it’s coming right towards us!

We couldn’t have wished for more!!!

2012-10-08-dust-plume

2012-10-09-stoffige-horizon

9 October

This picture shows the hazy view towards the approaching dust cloud.

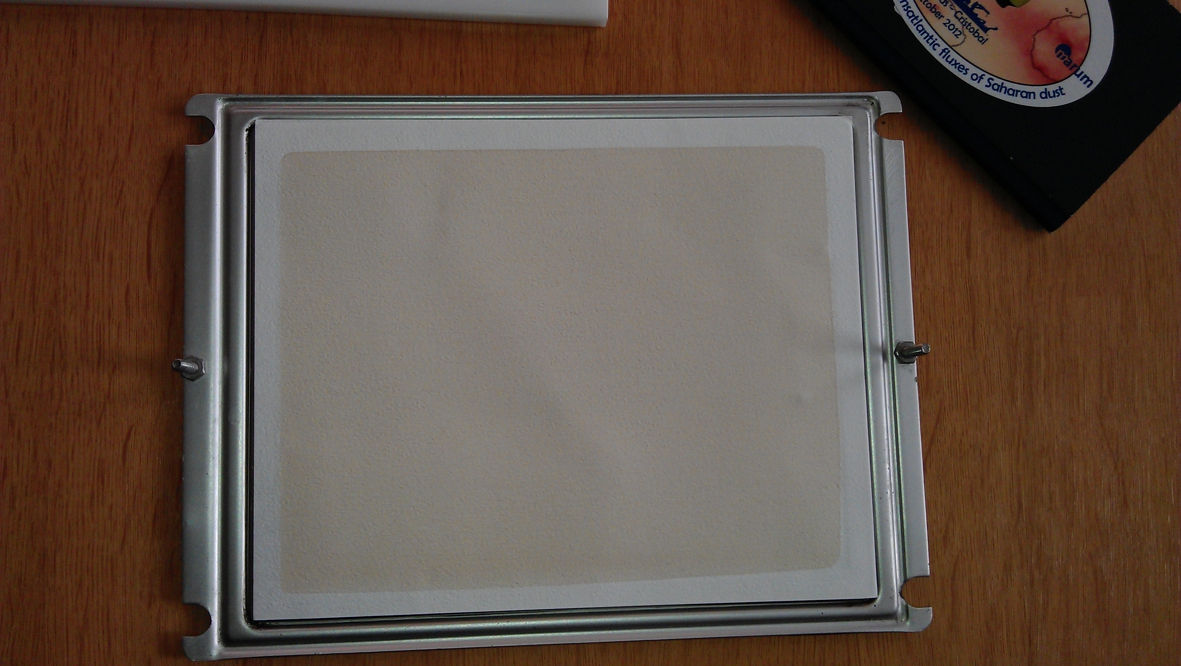

This dust is nicely collected with our dust samplers that are standing in the tower above the ship’s bridge. The coloration clearly shows: this is dust! With the satellite images, the onboard collected atmospheric profiles (the German weather service launches weather ballons twice a day!),  and backward trajectory calculations we will be able to pinpoint the source of the material.

to top

2012-10-09-VolFilter

2012-10-11-M2-tediep

11 October

Before we deploy any instrument, it is good to know the water depth. However, for the moored sediment traps, it is of vital importance to know the water depth as the buoys might implode when exposed to too much pressure (= too great depth).

Before the cruise I had guesstimated the water depths based on available sea charts. However, these appear not to be very accurate, simply as there is hardly any marine traffic here. Besides, with all depths >4000m it’s deep enoughÇŁ anyway for ships not to get in trouble...

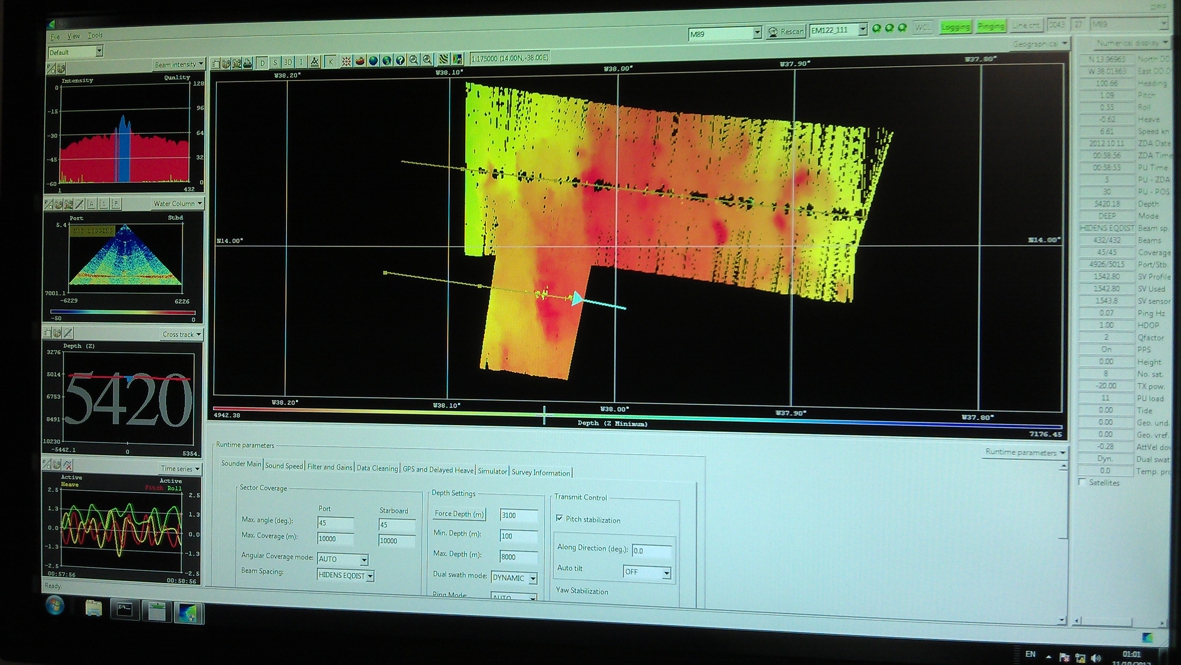

Here you see a picture of the multibeam-screen. This device measures the depth very accurately. Fortunately we managed ot o find a good spot for our mooring M2 at 4800 water depth.

to top

2012-10-12-M2-trap

Deploying a mooring is really team work: it involves a crane, a winch, the A-frame, which are all operated by individual people. Besides, all instruments have to be fixed to the cable, in the right position as well as in the right order!

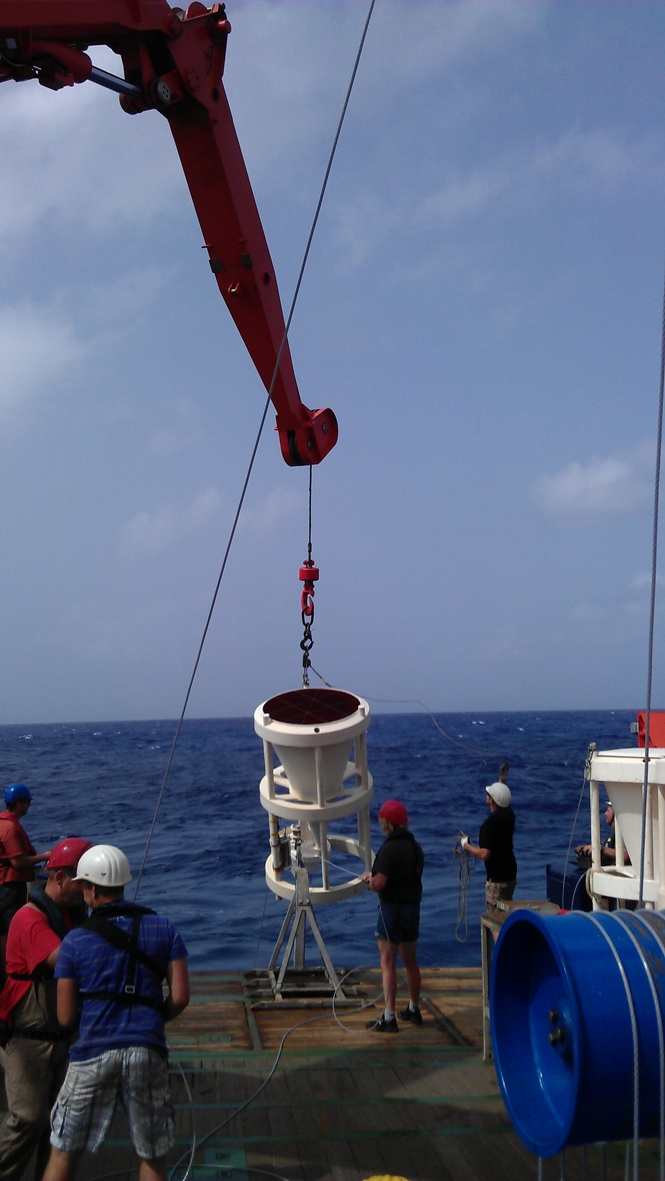

Here you see how a sediment trap is deployed. It’s too heavy to lift by hand, so it requires a crane.

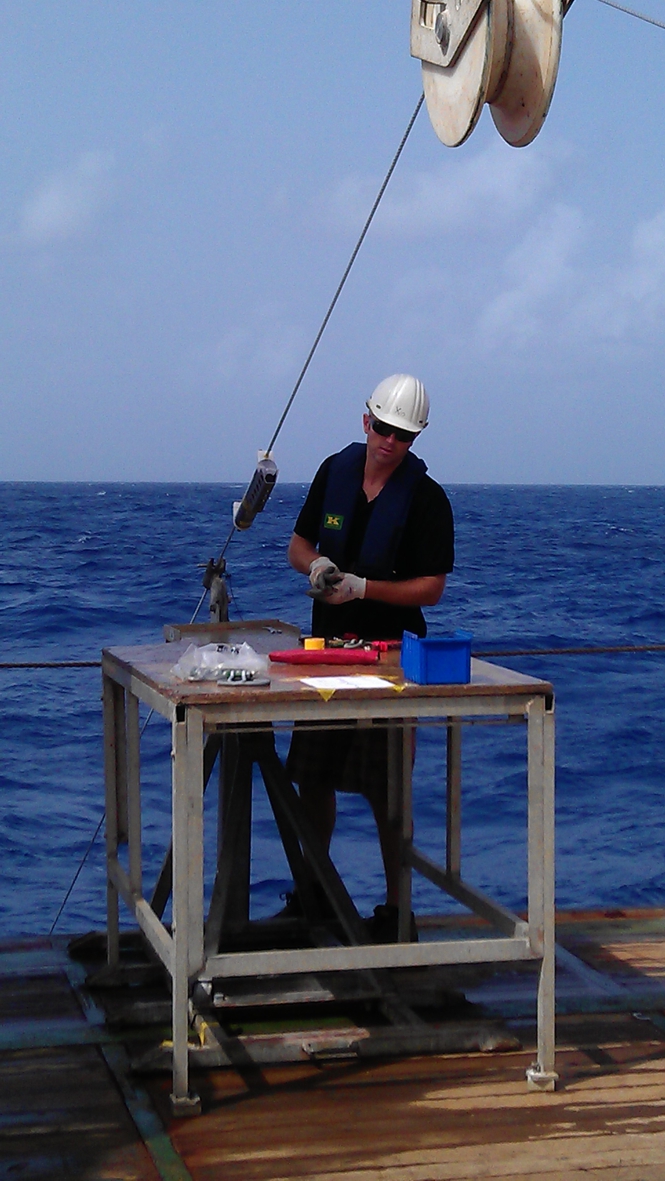

On the right you see Yvo standing at the deployment-table, a typical NIOZ-invention: it contains a hook with which the cable can be fixed just so that one does not have any tension on the cable whenever an instrument is attached to it. This is not only very practical but also safe.

What one cannot see on the picture is that the ship is rolling and heaving in all kinds of directions. For that reason all that are working near the ship’s edge are obliged to wear an inflatable life vest.

to top

2012-10-11-M2-Yvo

2012-10-11-M2-Bob

2012-10-11-M2-table

2012-10-11-M2-anchor

All our moorings are deployed starting from the top: the top buoy first, the anchor last. This whole procedure has been prepared at NIOZ where the right order of instruments and proper lengths of cable were determined. Since most instruments require power, they rely on batteries. This is another reason why it is of vital importance that someone (here: Bob) keeps a close and critical eye on all tools that are put over board. He checks which instruments, in what order, if they are switched on at all, and e.g., if the lids have been removed from the sediment traps so that they can collect sediments at all....

to top

2012-10-11-M2-releasers

11 October

Maybe the most important part of the mooring is the part that makes sure that the instruments can surface after a year.

The orange smarties create buoyancy, countered by the anchor, which is meant to keep the whole thing in place. The connection between these two end members is the so-called releaser.

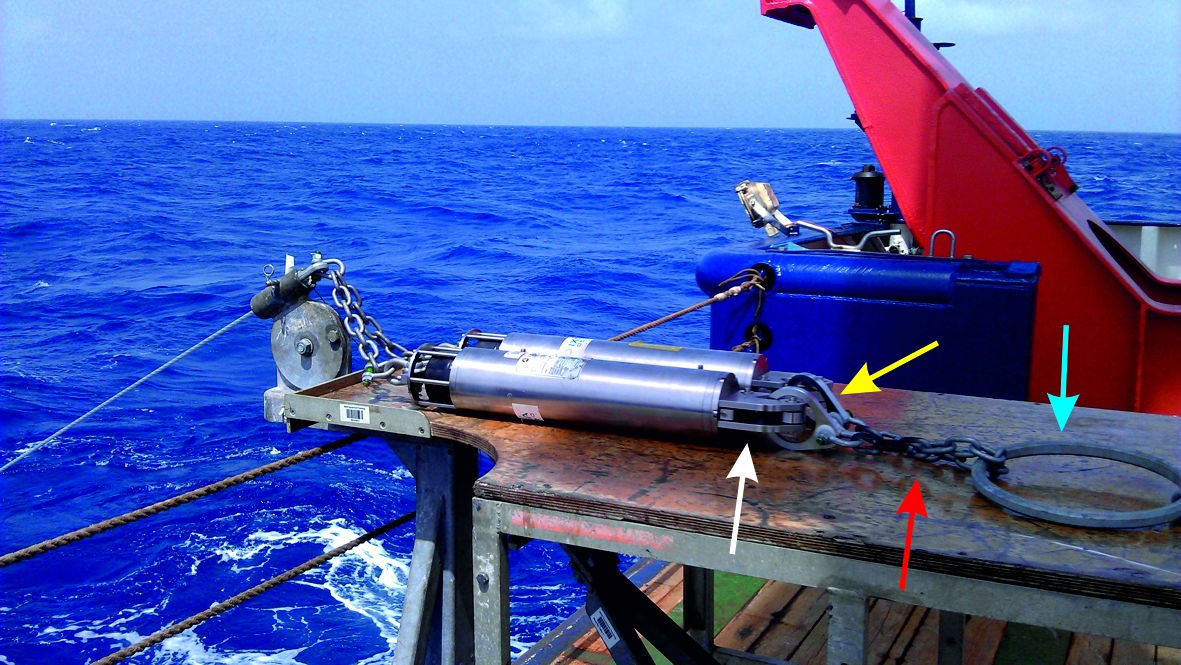

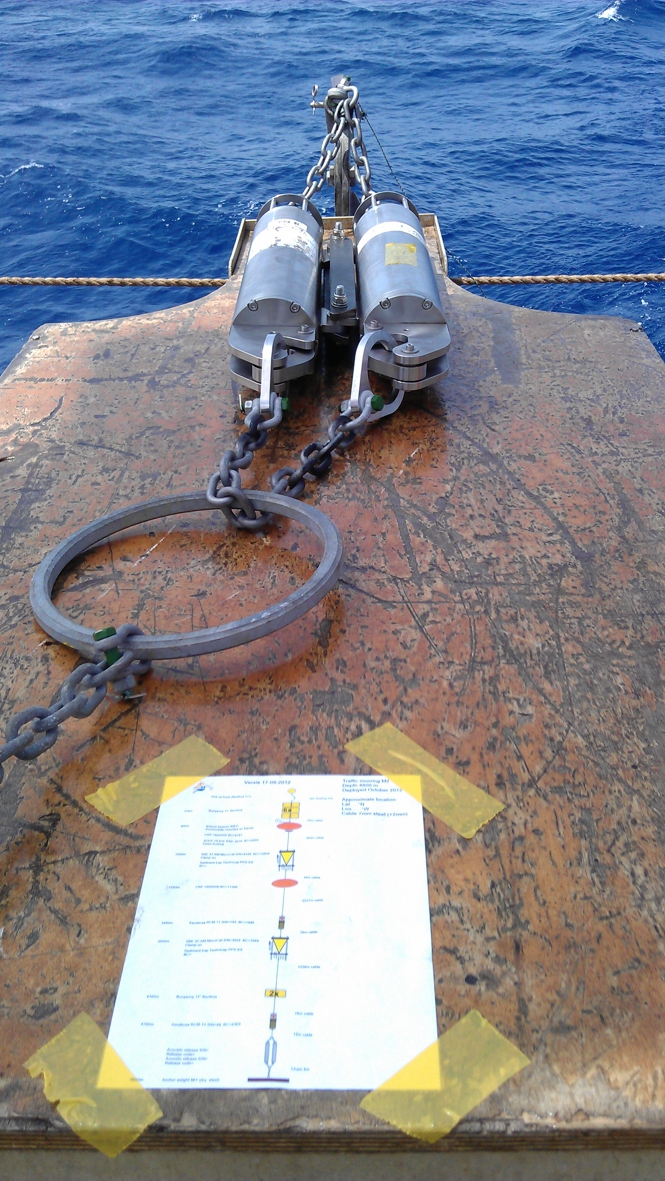

Here you see two of these releasers (silvery tubes) on the mooring table. At the bottom of the releasers there is a hook (white arrow) that holds a shell (yellow arro). After a year, the releasers get the command to let go of the shell so that the smarties can draw the whole string to the ocean surface.

However, sometimes the releasers malfunction due to e.g., a power/battery problem. For security reasons, the two shells are fixed to a chain (red arrow) which is looped through a wide metal ring (blue arrow). In case one of the releasers refuses to let go of the shell, the other one can still make sure the anchor is released by pulling this chain through the ring and the mooring can surface after all

11 October

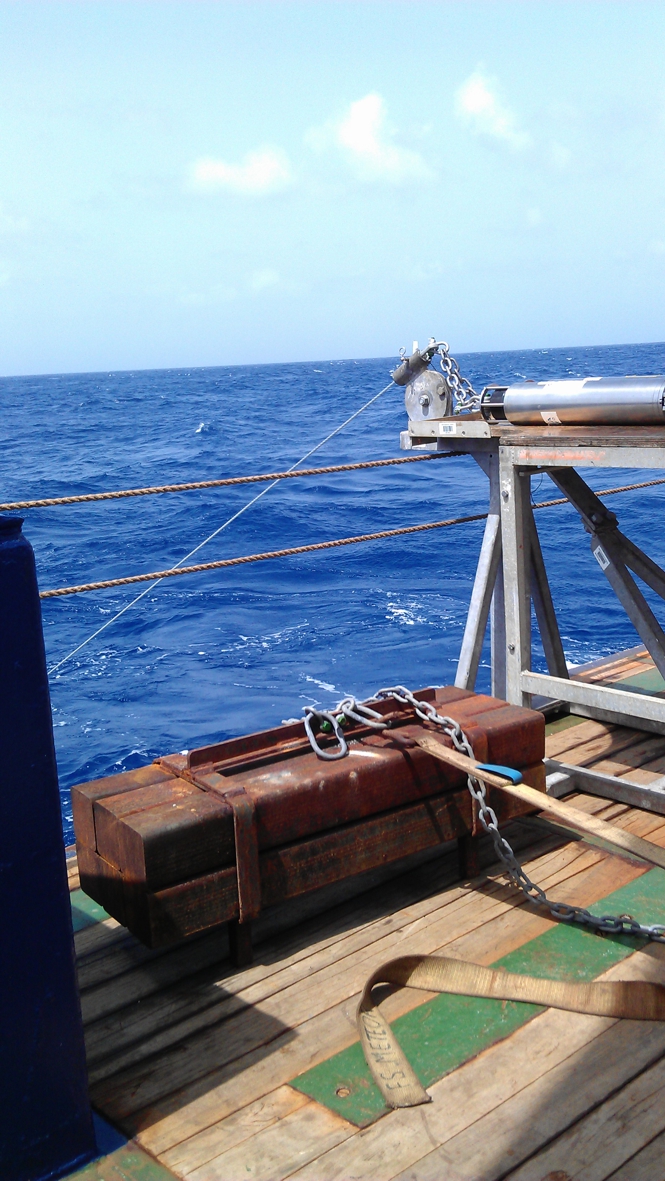

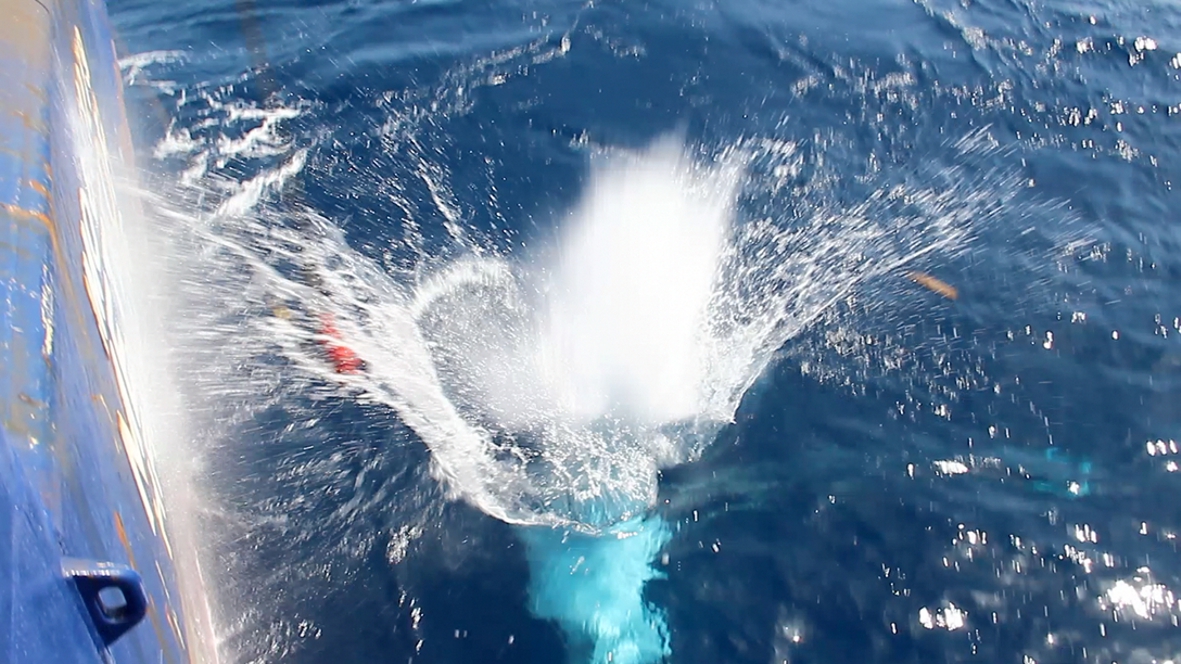

The very last part to enter the water is the anchor weight (here 800 kg), preferably with a big splash!

to top

2012-10-11-M2-plons


12 October

The anchor obviously sinks fastest, the last thing to submerge is the top float/smartie. It is very important to know where exactly the mooring is finally located, therefore we always try to find the top floats while still at the water surface and watch them go down.

As the ocean is almost 5km deep here, it takes a while before the anchor is standing on the sea floor. At station M3 it took more than an hour. With a kind of remote control we still communicate with the releasers; they send out a signal that we can hear with a hydrophone. This way we can also determine where exactly the mooring is positioned using at least three of these soundings and triangulation. So far, this has worked really well: the three moorings we deployed so far are exactly there where we wanted them!

to top

2012-10-12-eendjes

2012-10-13-adcp

2012-10-14-regen 2012-10-14-regenboog

14 October

Today we’re sailing quite close to the ITCZ, (InterTropical Convergence Zone), which is the area where winds from the northern and southern hemispheres meet. This convergence is accompanied by rising air, causing spectacular clouds to come about but also they drop a lot of rain.
The decreased visibility is in this case unfortunately not the result of dispersed Saharan dust but of water droplets instead.....

The photo on the left was made looking back from the stern of the ship. The photo on the right was made from the bow where the rain and sun caused a nice rainbow.

15 October

Today is a very busy day as we’re on station M4. This means a full program of multi-beam survey, CTD and water sampling, multicore and deployment of the mooring.

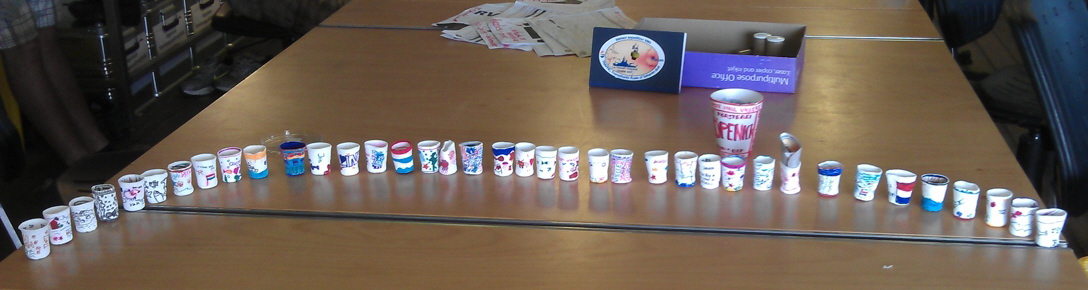

Every time a multicore is deployed, I fixed a net with styrofoam cups to the frame. These cups were decorated by the children of Britte’s class at the primary school “De Fontein” in Den Burg, Texel. After the cruise they’ll get their cups back and I’ll explain to them how the immense pressure (about 500bar) that is caused by the 5000m water depth, squeezes out all the air from the foam....
The big cup shows the original state.

2012-10-15-bekertjes

2012-10-15-bekertjes-zoom3

2012-10-16-lifeboat1

16 October

As yesterday was completely filled with station M4, the weekly safety drill that normally is held on Mondays was postponed to today.
For the scientific crew such a safety drill basically comes down to getting your life vest and warm clothing and make sure you’re not standing in the way.

Everybody then goes to deck where the general assembly point is. First, it is checked if all are here and from there on the ship’s crew tries to assemble the problems (today they practiced some fire drills) and the scientific crew is led to one of two life boats.

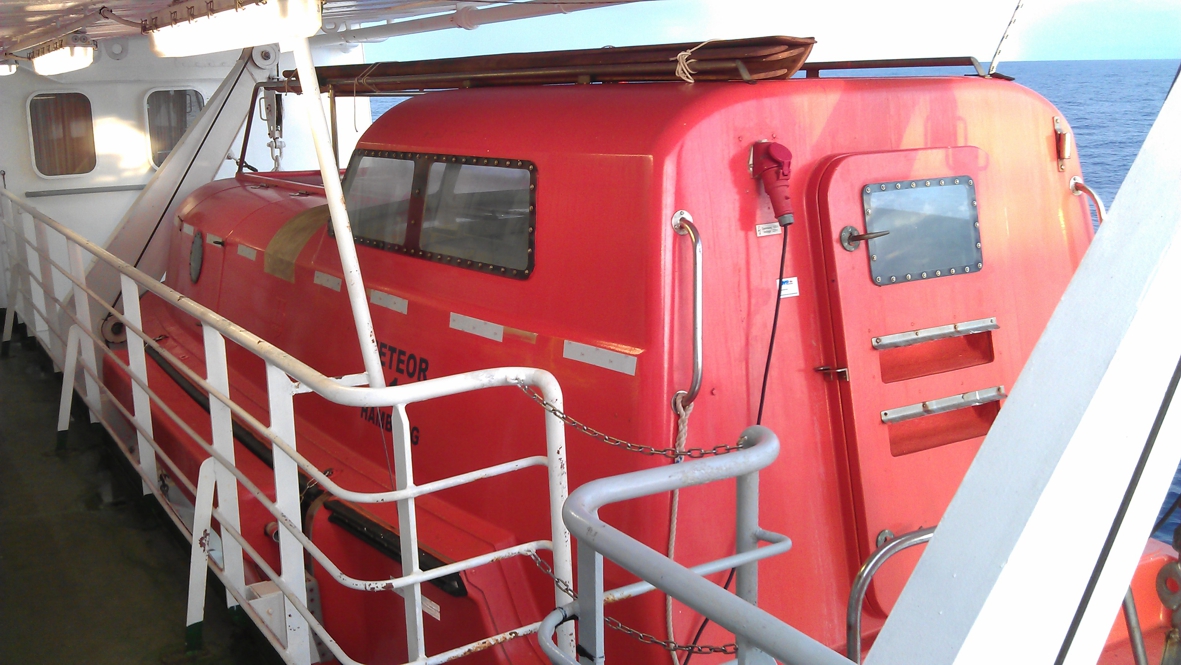

Here you see the closed life boat, fortunately we got our drill inside the other one (below) which has an open top and is therefore not so hot.....

Before, I showed a picture of Meteor in Las Palmas. There you can see nicely where this life boat is located on the ship.

to top

2012-10-16-meteorit

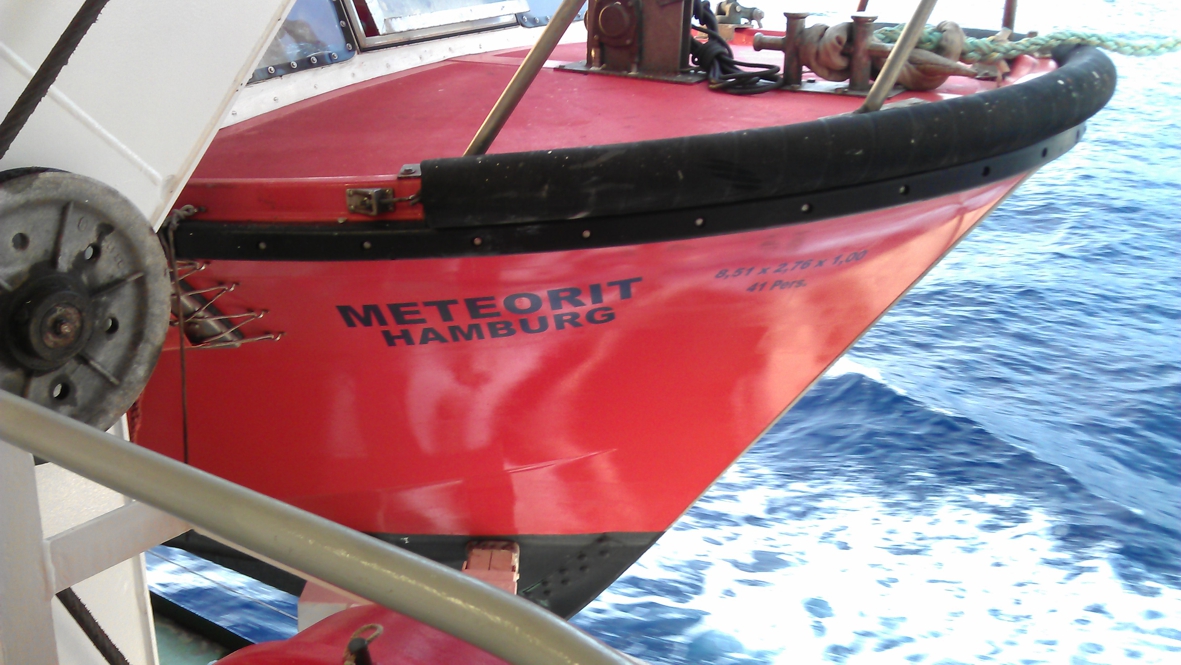

The other life boat is called Meteorit.

Once we got there, we all had to board and then Leif gave us some explanation on the procedures that have to be followed in case of emergency.

We  were only ten, but this little boat should fit 41 people! On board there are all kinds of supplies of which the most important ones are survival cookies, water and seasickness pills....



Akio and Matthias fortunately do not have such problems......

2012-10-16-lifesavers

One of the supply containers with cookies (blue package), seasickness pills and emergency lights.

2012-10-16-lifeboat2

2012-10-16-Akio-Matthias

2012-10-16-bad-fish

Nowadays, ships should be easily located on very short notice. However, regulations still prescribe measures that should make sure the survivors can stay alive for longer time.
Should the supplies not suffice, there is also fishing gear on board. However, not all fish are edible, and therefore, a list with pictures and descriptions is included showing fish that one should avoid eating.

Barry is showing this list here.

We sure hope that the Meteor crew will never be in the situation to depend on their life boats but it was a very good thing to see and realize what it entails to be in an emergency situation!

2012-10-16-safecrew

2012-10-17-cloud-panorama

17 oktober
Today was a very busy day in which we successfully deployed our 5th and last mooring. As we are near the InterTropical Convergence Zone, we see the most spectacular clouds!
Nice eh!

18 October
We study and sample the sea floor by pushing in small plastic tubes, using a so-called multicorer.

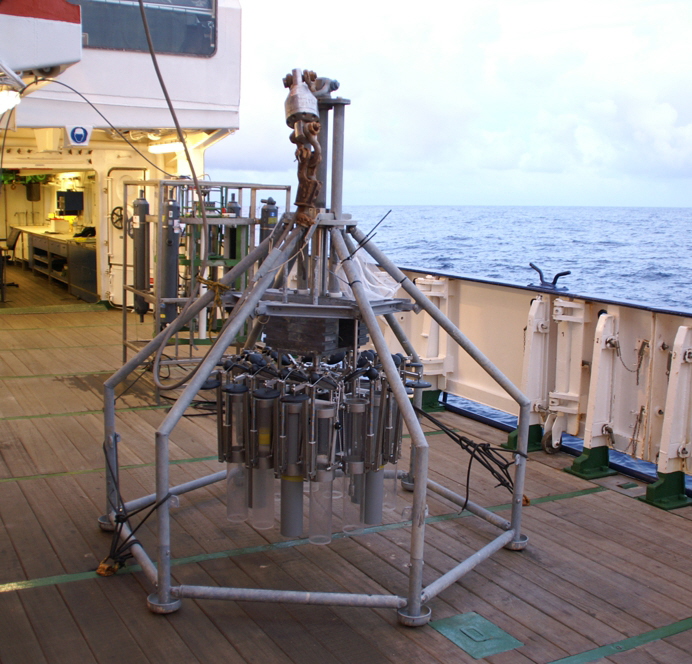

Here you see this tool, which looks a bit like an octopus. In this case we have a total of 12 tubes; 3 grey ones and 9 transparent ones. Once the multicorer is standing on the sea bottom, the tubes are pushed into the seafloor sediments, a lid is put on top as well as below, and the whole thing is then hauled up to deck.

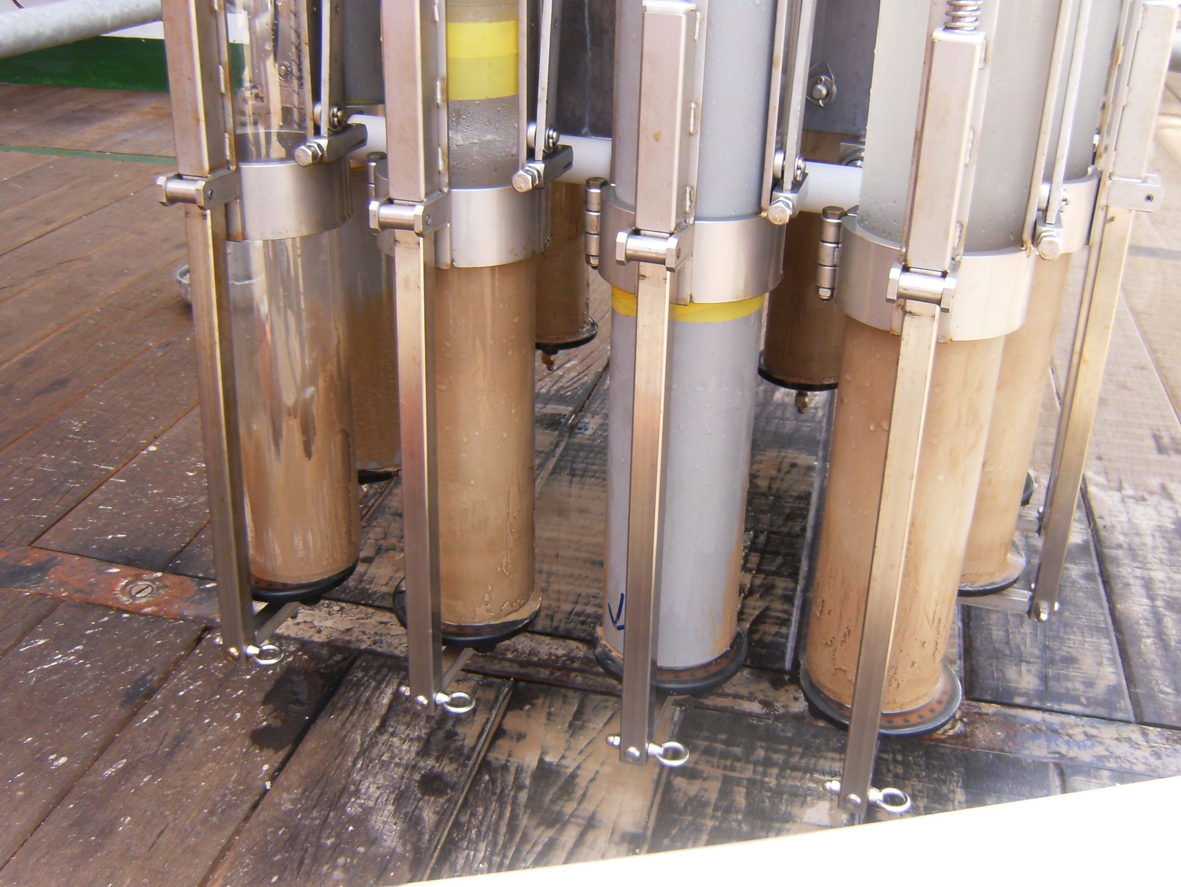

Below you see four tubes: 1 grey one and 3 transparent ones. The left-most tube failed; it probably has been pushed into the sea floor but it came up empty. The other three tubes are almost half-full: a good catch!

2012-10-18-muc001

2012-10-18-muc00

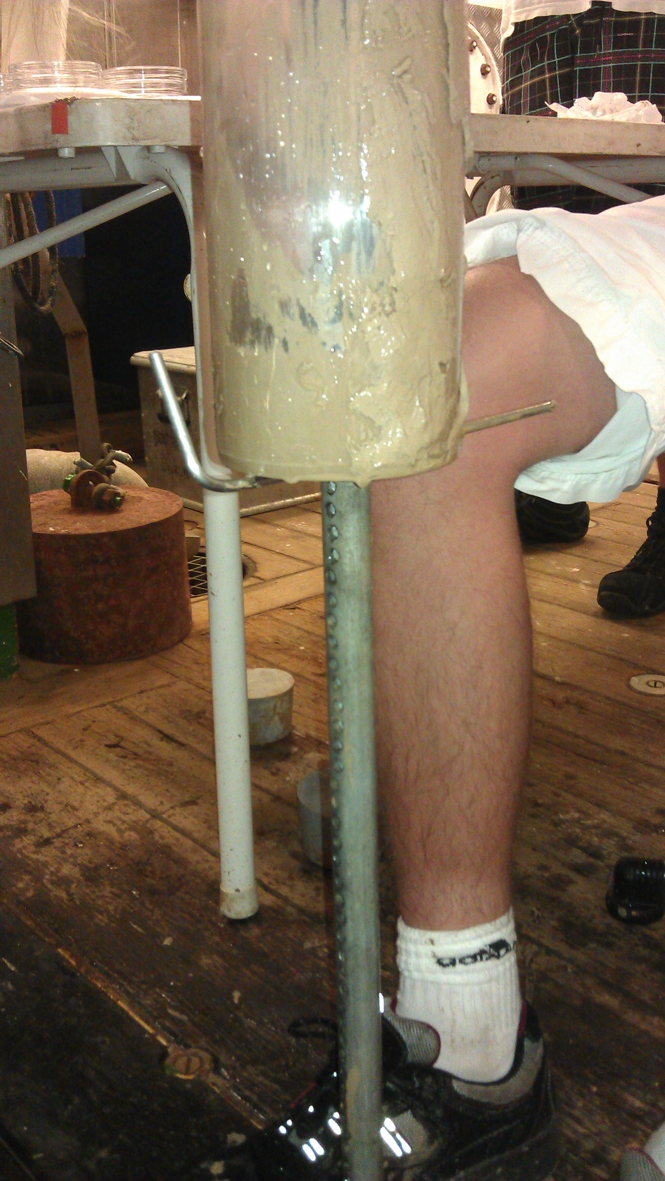

First the tube is put on a kind of stamp, which has holes every centimeter. Using a spike until which the tube is pushed over the stamp, we can sub-sample the sediments into 1-cm slabs.

2012-10-18-muc04

2012-10-18-muc01

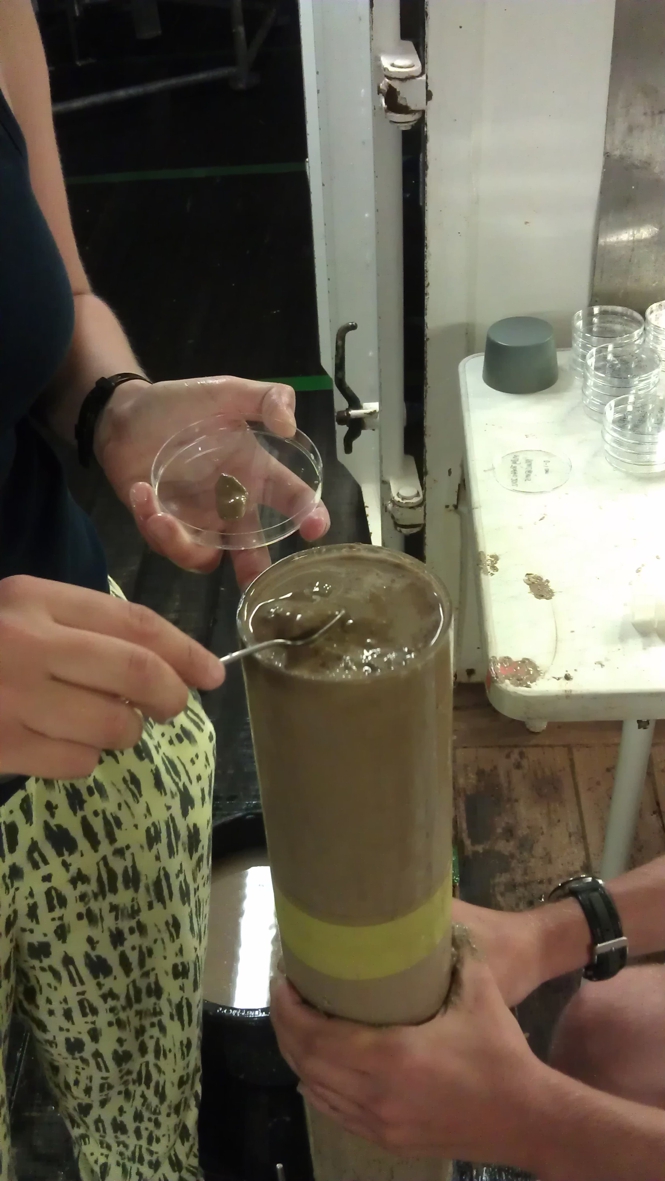

The top-most sediments in the tube (the actual sea floor!) is very weak and has to be sampled using a syringe and/or spoon. All samples are stored in petri dishes.

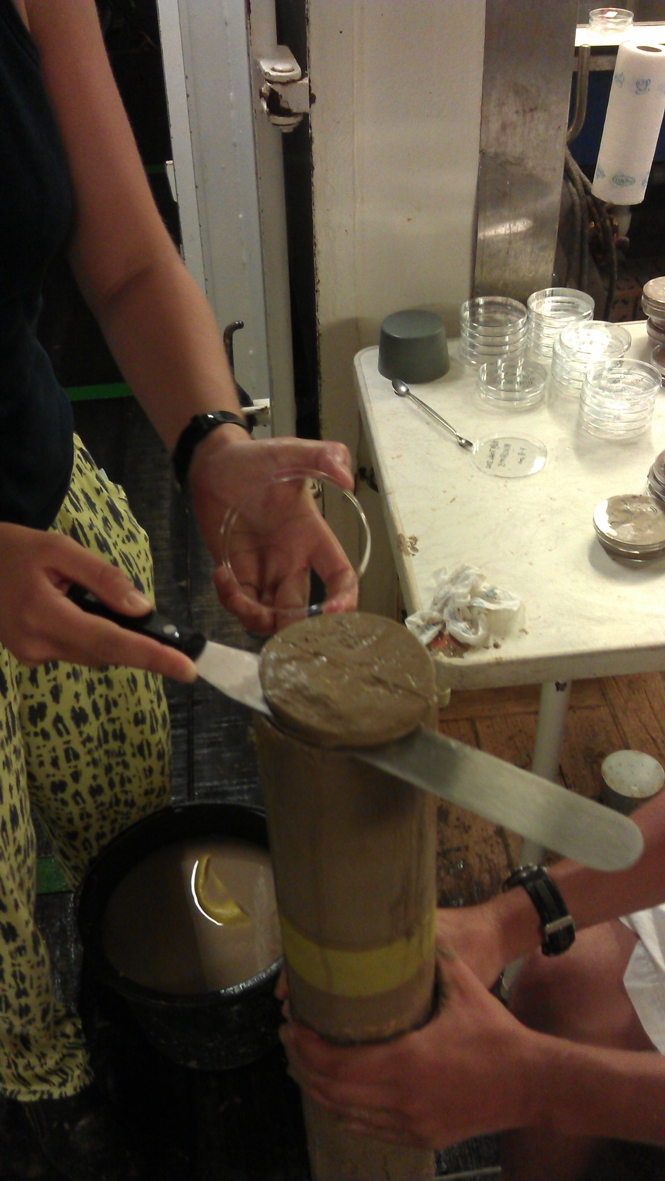

The rest of the core is relatively firm material, which can be cut into slabs.

2012-10-18-muc02

2012-10-18-muc03

2012-10-18-muc05

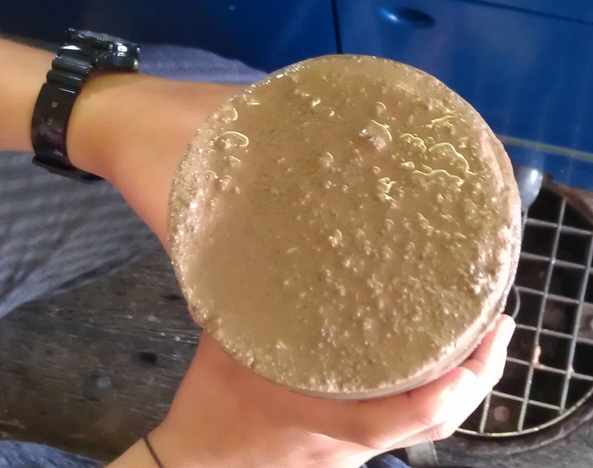

Here you see the sea floor, which we retrieved at about 5km water depth!

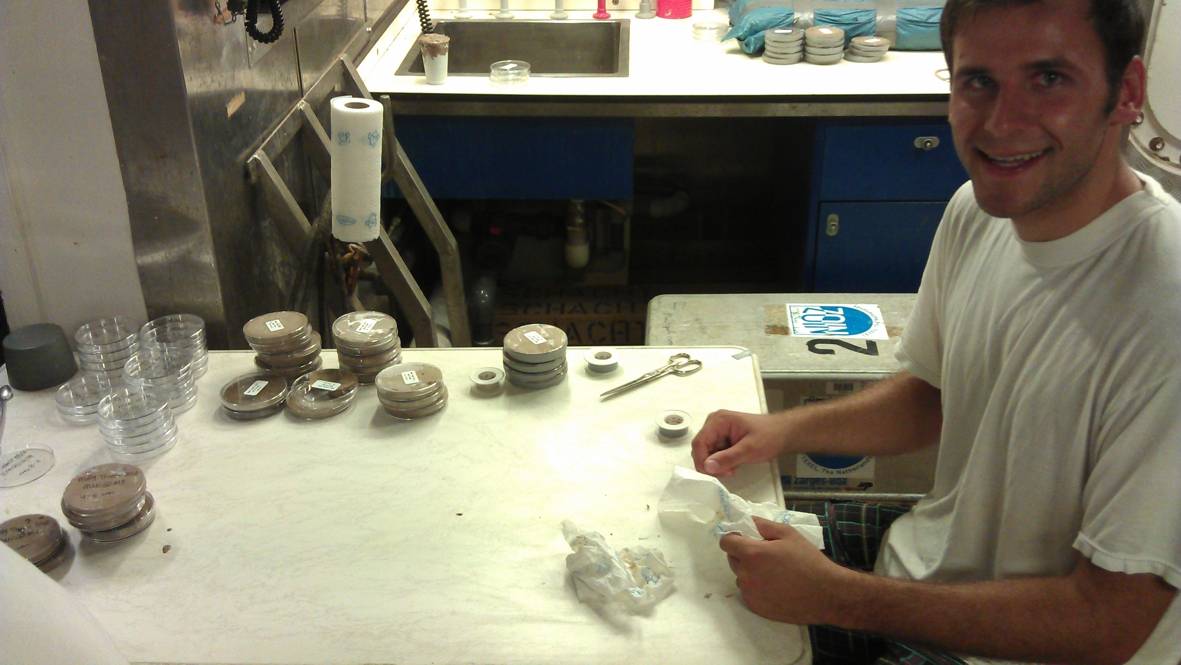

This is Matthias, who, together with Akio, is helping us sample the core. You also see the petri dishes, partly filled with sediments, to be analysed back home in the institute. Despite the hour (on this picture it┬┤s already 4 AM) Akio and Matthias are still cheerful and very welcome colleagues!

2012-10-18-muc06


18 oktober

One doesn┤t need to go that far to study Saharan dust! Today, a big cloud of dust reached northern Europe. This material originates from Algeria. (Link┬ to Dutch site)

This stuff is so fine grained that it can only come down with rain drops. If you have enough of it, it may spoil your newly-washed car... :-D

2012-10-18-Saharastof

2012-10-21-Sat-Images-DBBH

21 October

We were very lucky with the weather during this trip: tropical storms were around us but they didn’t affect our program.

The animation here consists of 3-hourly satellite images in a sequence; they nicely show how tropical storms arise from the band of clouds in the InterTropical Convergence Zone.

It also shows the position of RV Meteor and you can see how we sailed, where our stations were, and how our last transit into the Caribbean went really fast!

(The video is 30MB and may take some time to load)

to top

22 October

Land in sight! In the far distance one can just discern the coast of Colombia

2012-10-22-LandInZicht

2012-10-23-machine01

23 October

Now that the scientific program is finished (although we still have to sort out the data and write the cruise report!) there is some time to do other things like: a tour through the ship’s interior.

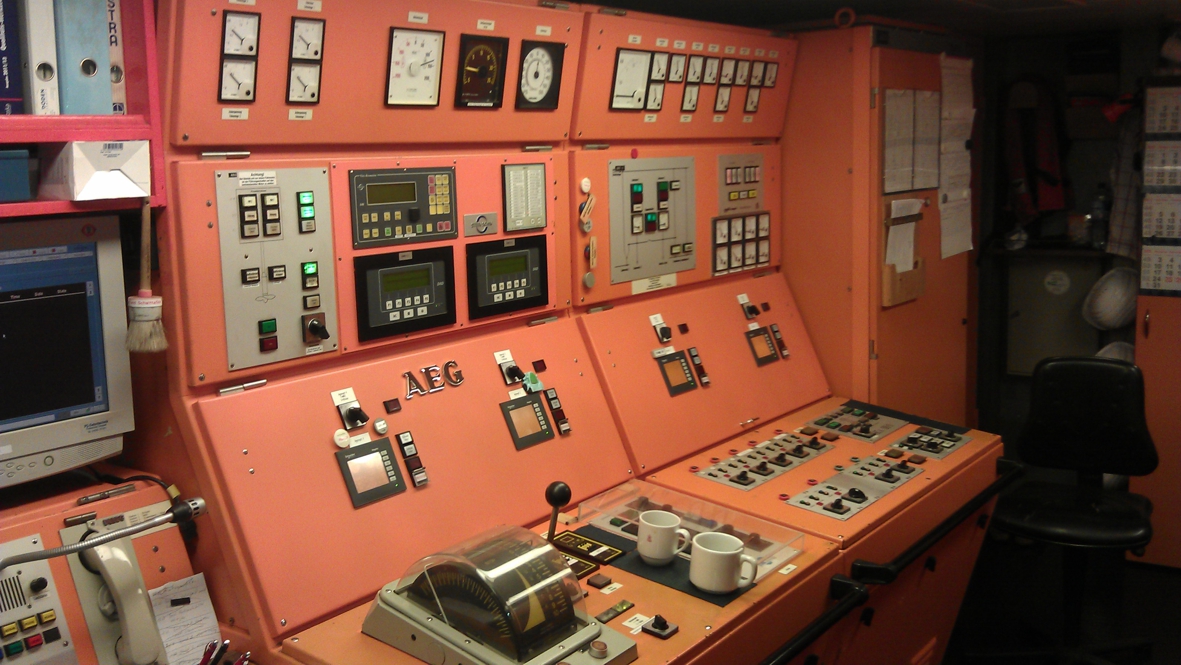

Here you can see the engine room. The Meteor is a diesel-electric ship, meaning that power is made with diesel engines, and the power is used in an electro motor that drives the propellor of the ship.

The more power is generated by the 4 diesels, the faster the ship will sail. Meteor┤s max speed is 13.5 knots. As we don┤t need to go on top speed all the time, only two diesel engines are being used, which still result in a speed of 12 knots!.

Fuel consumption is about 13.000 liter per day, and thanks to the 450m│ fuel tank, Meteor can sail for about 5 weeks without port call.

to top

2012-10-23-machine04

Drinking water is made onboard by pressing sea water through a membrane. This membrane keeps out all salts and organisms living in the ocean.

Per day, 20m│ (20.000 liters!) fresh water are produced. However, as we are only 47 people now, there is no need for so much water. Meteor┬┤s max capacity is 65 persons.

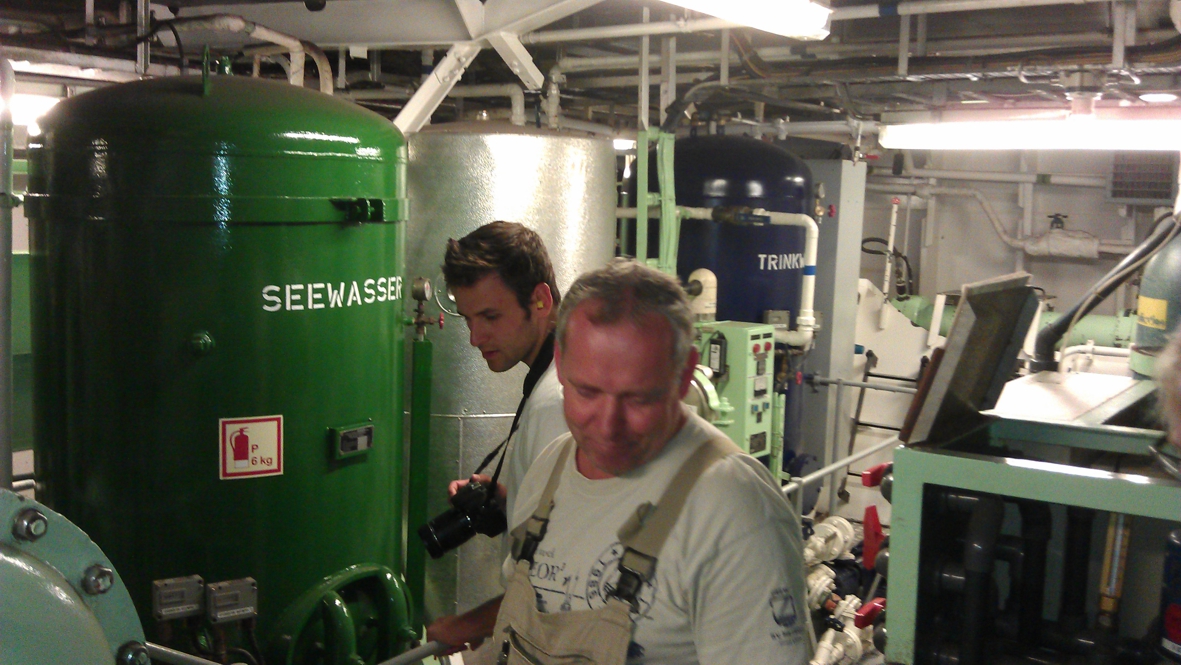

Here you see Matthias and Peter (the chief engineer) next to the `salt-to-fresh-water┤ tanks.

to top

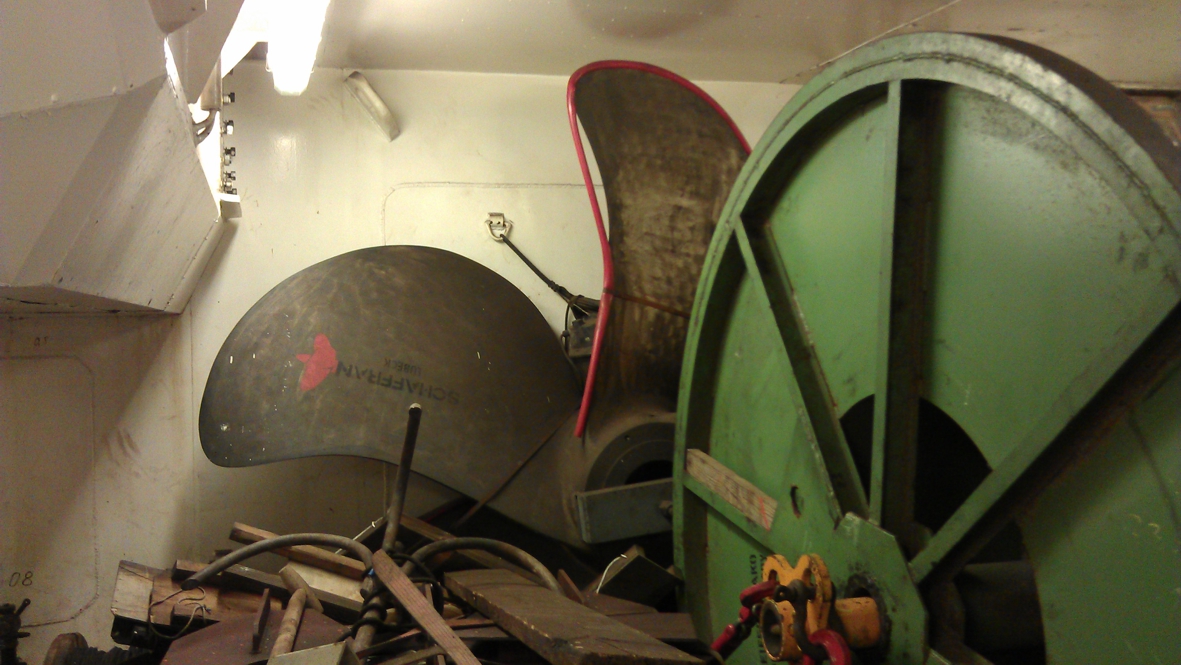

This is one of the ship┤s stores, containing all kinds of spares. For example, the spare propellor, which has been stored here before Meteor┤s first trip (back in 1986). Fortunately it was never needed yet so far!

to top

2012-10-23-machine05

24 October

Thanks to Matthias and Akio, we perceive clouds completely differently now...

2012-10-24-clouds01
2012-10-24-clouds02
2012-10-24-clouds04
2012-10-24-clouds03
2012-10-24-clouds05 2012-10-24-clouds06
2012-10-24-sandy

24 October

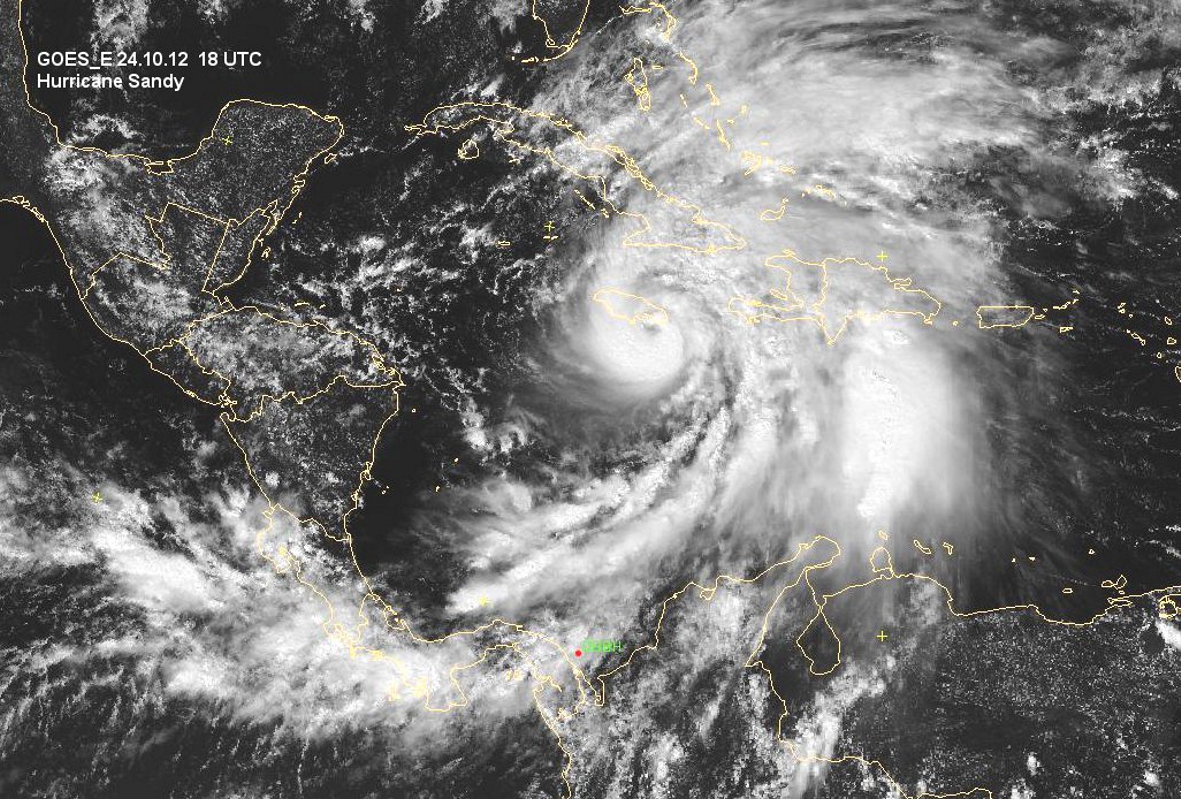

Hurricane Sandy was `born` in the Caribbean while we were around. We saw it happening: first a cluster of clouds was seen, which developed into a tropical depression, a tropical storm, and finally a hurricane.

Sandy was a tough one: wind speeds up to 70knots, and in showers up to 90knots (force 12 on the Beaufort scale is

This photo is similar to the one shown┬  in the animation. Here one can clearly see how hurricane Sandy has developed into a hurricane with a clearly defined center (eye) and drawing in clouds from over thousands of kilometers

2012-10-25-birds001 2012-10-25-birds01

2012-10-25-birds02 2012-10-25-birds03

25 October

Unfortunately we did not see many marine wildlife. However, we saw quite some birds!
Like these gannets that throw themselves into the water to catch fish.

2012-10-25-birds052012-10-25-birds062012-10-25-birds042012-10-25-birds08

25 October

After more than 3 weeks we reached Cristobal, Panama. The agent arranged transport to the Pacific side of the country: Panama City. Here you see the skylines of the old town as well as the new one.

to┬ top

2012-10-25-skyline01

2012-10-25-skyline02

A word of thanks to all our loyal followers of the cruise on this weblog.

The children of primary school `De Fontein` Den Burg, Texel, the netherlands, are especially thanked, as their interest led to this weblog in the first place.

Another word of thanks goes to Jana Stone at MARUM-Bremen, for translating all the texts into German and publishing them on the MARUM website.
